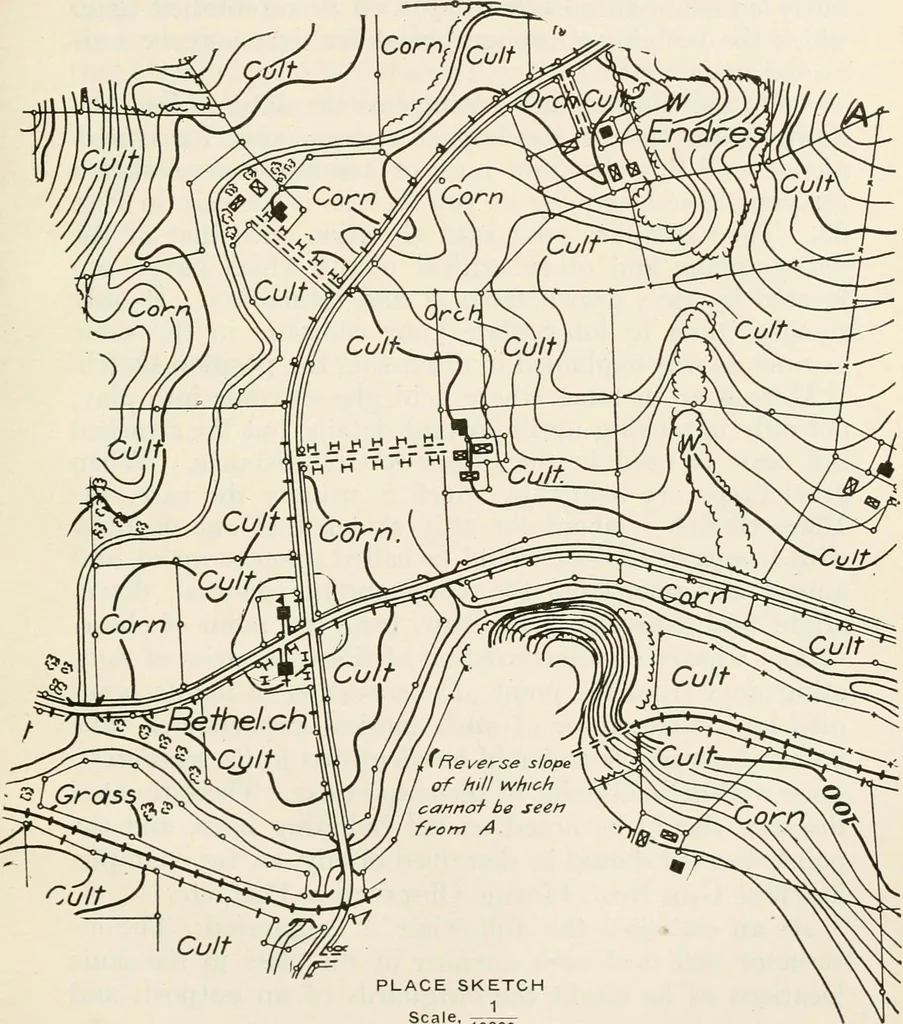

particular terrain, as often may be the case.In that event, the message that you are about to send will 100 Place Sketch 101 be of much greater value to your commanding officer ifaccompanied by a sketch. As it is obvious the entire sketch must be made from theone point of observation. A, hence the… … PLACE SKETCH _^ 10000V. I 10 Scale, Fig. 35 102 IMiLiTARY Sketching and Map Reading First orient your message book, then look over the areato be sketclied, and endeavor to locate some feature orfeatures of the terrain which will best serve the purpose ofa frame work upon which to connect up the…
