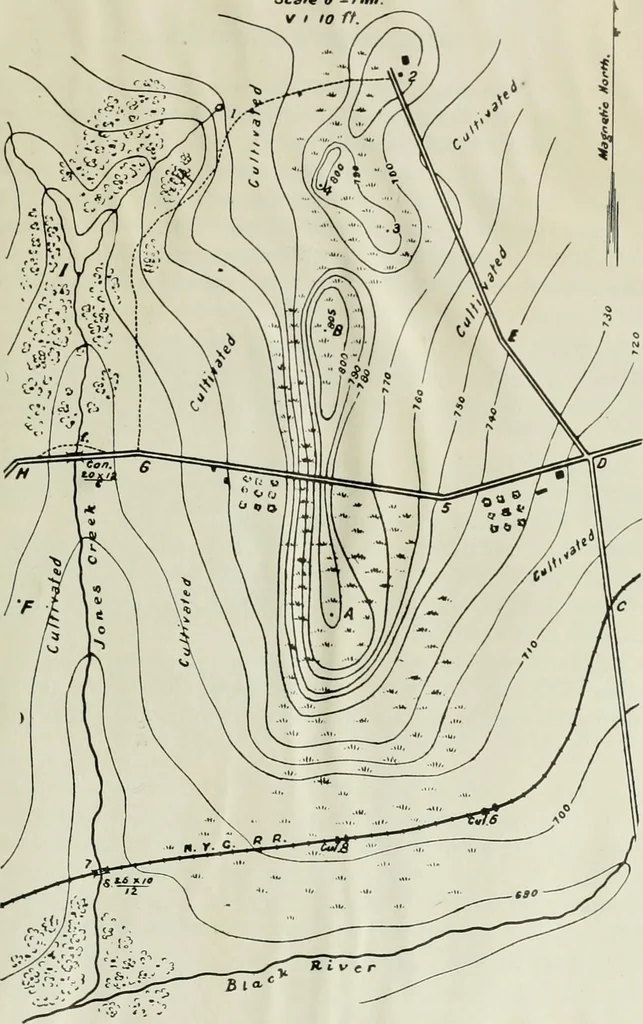

FRAME WORK POSITION SK.E.TCM. Jc a le 6 xlmi/e A. B is the Base LineC. D. £.. F. G. H. I. Points located by intersection1.2.3.4.5.6.7.6 Points located by resectionintersection lines are plain*Resection lines are broken Fig. 21 For Non-Commissioned Officers 59 POSITION SKETCH Jones Cr. and Black… … Fig. 22 60 MILITARY SKETCHING AND MAP READING LESSONS XXI, XXII AND XXIII Position Sketch (Continued) The instructor should designate a certain area of about one square mile to besketched, and will go over the ground selected with the class and choose a suitablebase line as described in the…
