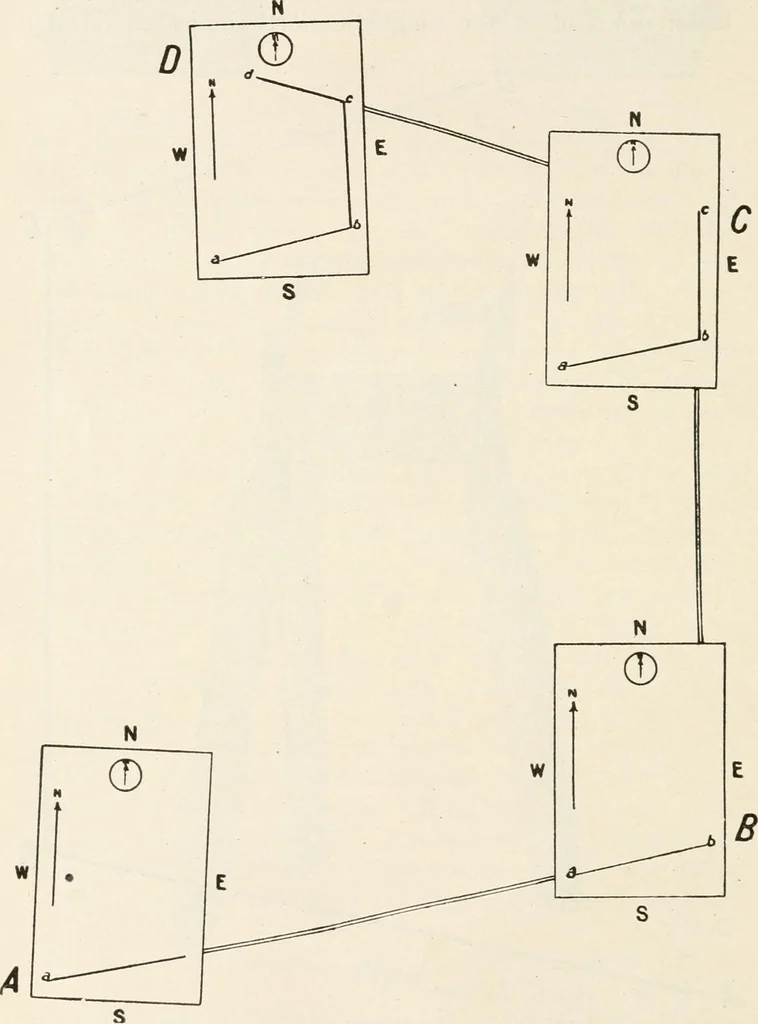

] ^ Fig. 23 2 INIiLiTARY Sketching and Map Reading paper are j)ointing in the same direction. In the future Ave will refer to this operation as Orienting the board. Go to the point A on the road. (See Fig. 24.) Orient … Fig. 24 Flat Sketch 73 the board. From any convenient point a on the board,draw a straight line in the direction Ah. Next, pace thedistance from A to B, and, with vour scale of paces, scale, 1 „_ . 2Q QQQ oi 3— 1 mile as the case may be, lay off the line, ah, representing the distance AB. In…
