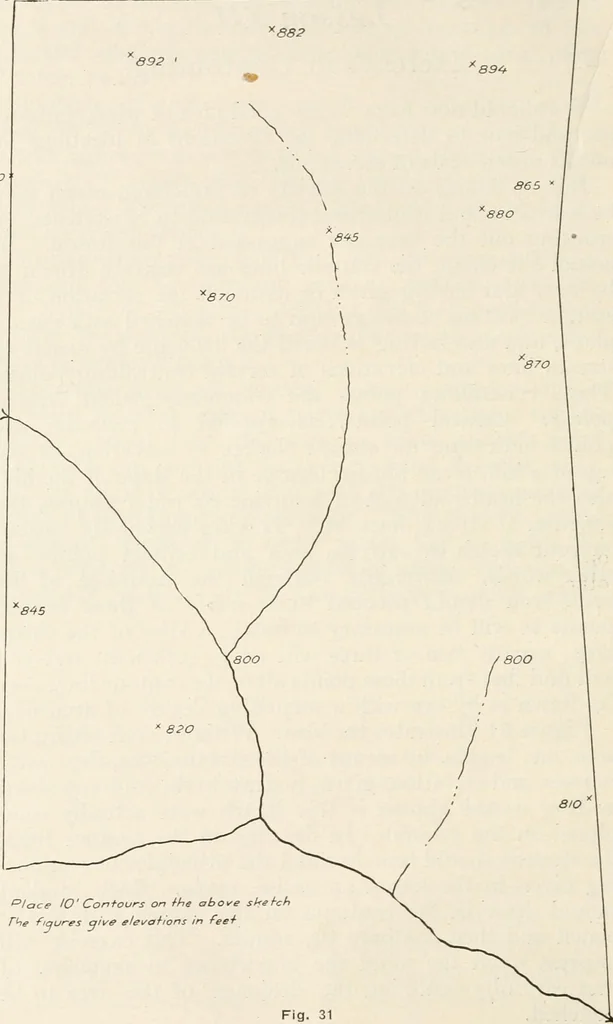

would appear if this sketch were actually com-pleted on the ground. In drawing in the contour lines,the student should l^ear in mind the principles of contour-ing given in the lesson on relief maps. Each studentshould draw in the contours on this sketch with a softpencil and then compare the… … -lace lO Con+ours on the above sl^efchThe fiqur-es qive elevaiions in feef Fig. 31 7^5 Exercises in Contouring 85 Students should be given tracing paper and contouredmaps with instructions to trace upon the paper the streamlines and elevations of critical points, then remove thetracing paper from…
