Locomotive catechism; an up-to-date, practical and complete work on the locomotive--treating on the design, construction, repair and running of all kinds of locomotives .. (1908)
Grimshaw, Robert, 1850- [from old catalog] · New York, The N. W. Henley publishing company · leaf 560

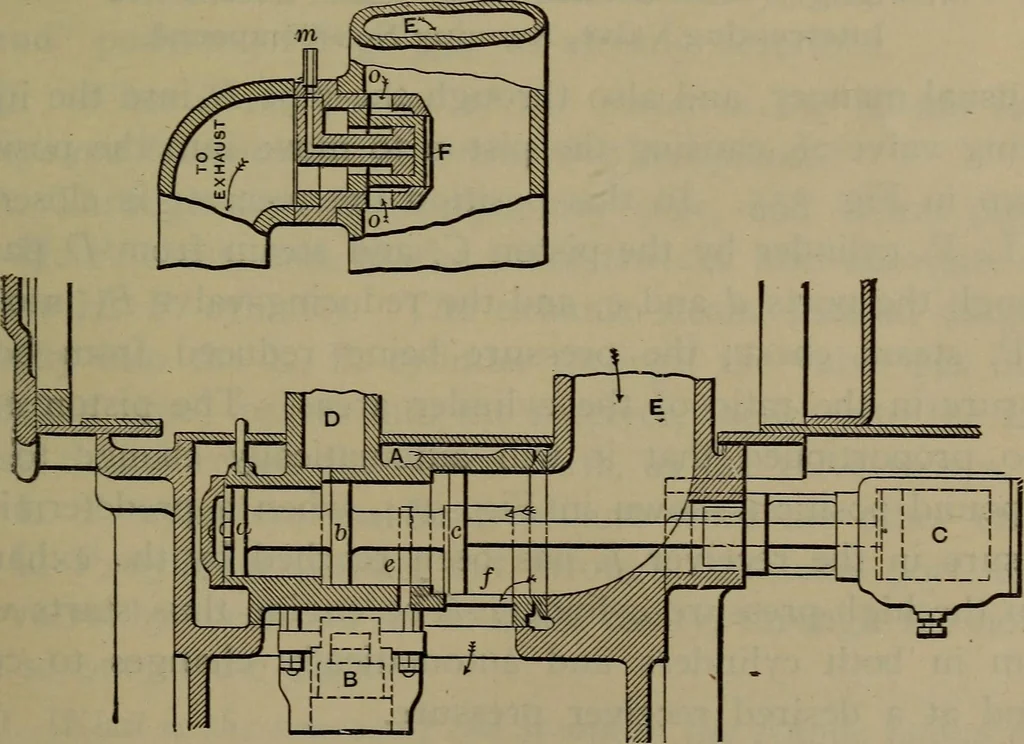

Fig. 353- Front Section of Rhode Island Locomotive Works Intercepting Valve at Ports d and e ; also Front View of Portion of Receiver with Exhaust Valve. … Fig. 354. Side Section of Rhode Island Locomotive WorksIntercepting Valve, Running Compound. 546 LOCOMOTIVE CATECHISM. Q. Describe the arrangement of cylinders and valves of theBatchellor compound engine of the Rhode Island LocomotiveWorks? A. As shown in Fig. 353, which gives a front section ofthe…
Locomotives
