The internal combustion engine; being a text book on gas, oil and petrol engines, for the use of students and engineers (1909)
Wimperis, Harry Egerton, 1876- · New York, Van Nostrand · leaf 292

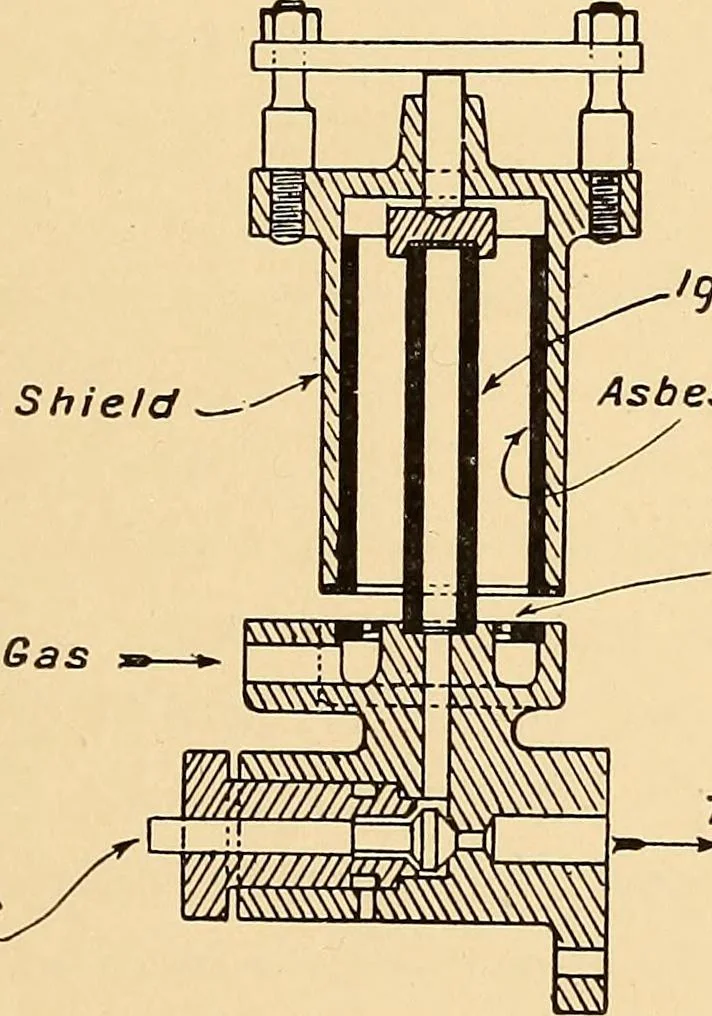

her method of ignition often used with oil enginesis to feed the fuel right into a hot combustion chamberconnected to the cylinder. This method as carried out onthe Hornsby engine has already been illustrated. It worksvery well and even crude Borneo oil can be vaporized andignited in this way. The… … Ignition tube (Clay)Asbestos Millboard Liner Gas BurnerTo Cylinder Fig. 95.—Ignition Tube and Timing Valve. nearly done so already. It is equally suitable for gas,oil or petrol engines. Electric ignition can be carried out by either (1) high-tension currents or (2) low-tension currents. In the…
Internal combustion engines
