Creighton, William Henry Paul, 1859- · New York, J. Wiley & sons; [etc., etc.] · leaf 358

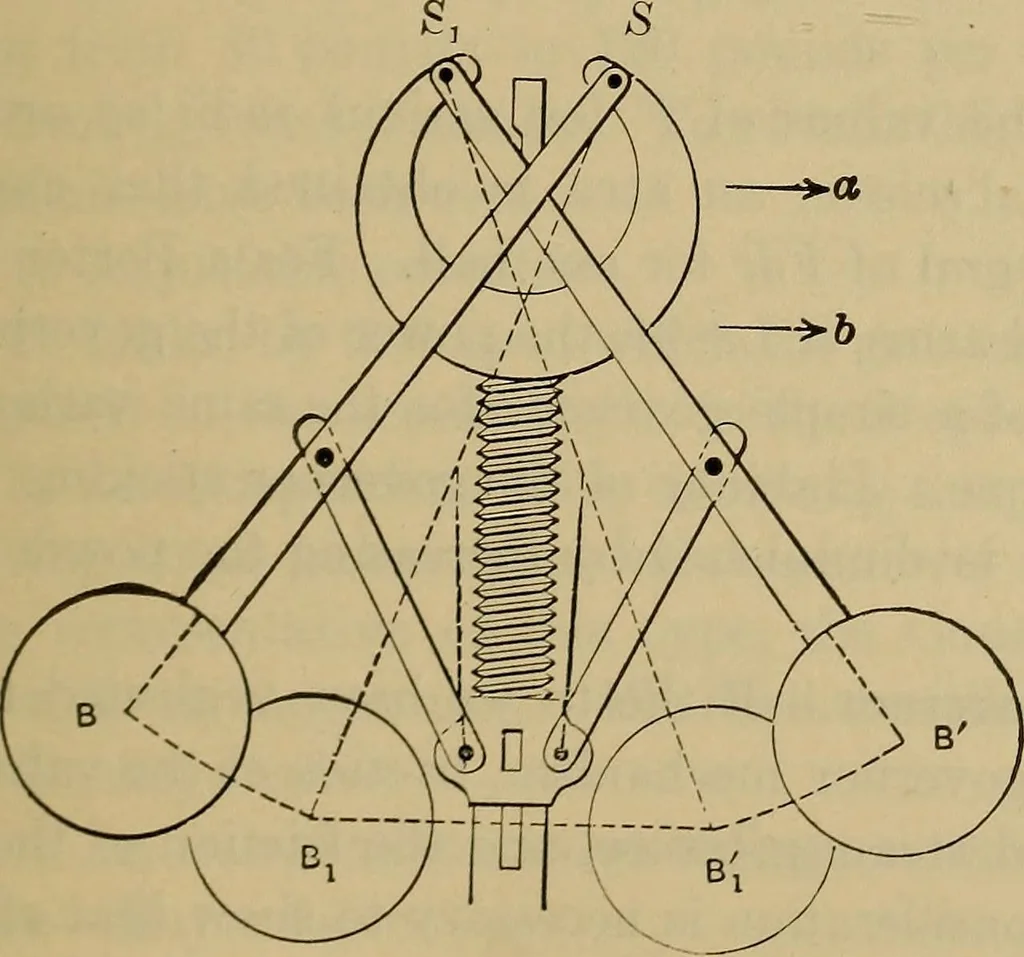

Fig. 173. Fig. 174. proximately is found by crossing the arms of the governor-ballsand making use of auxiliary arms, so that the balls in ascendingdescribe an approximate parabola instead of the circle. … Fig. 175. On the axis XXf of Fig. 122 lay off a parabola as shown.Draw the ordinates BB and erect the normals BS and BSi,Draw a parallel ordinate BiBx and erect normals as before to 338 THE STEAM-ENGINE AND OTHER HEAT-MOTORS. intersect the other normals in some points S and Si. It is a prop-erty of…
Steam-engines · Heat-engines
