The internal combustion engine; a text-book for the use of students and engineers (1915)
Wimperis, Harry Egerton, 1876- · New York, D. Van Nostrand company · leaf 175

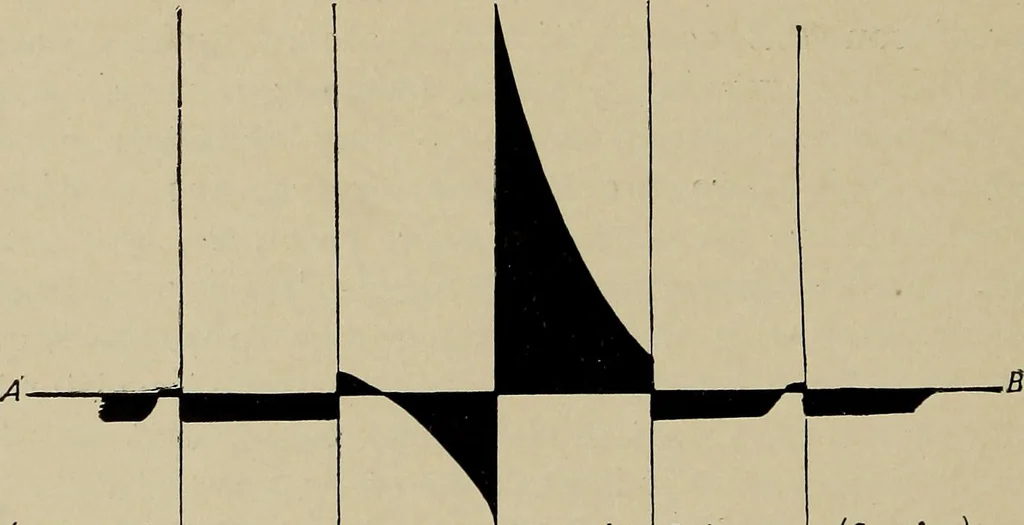

Fig. 50.—Forces acting at Gudgeon Pin and at Crank Pin. In order to study it more fully it is necessary to considerthe variation of F during the cycle. Now F is proportional-to the height of the indicator diagram, and if the four suc-cessive strokes of a four-stroke engine are set out in one… … (Exhaust) Suction Comoressiok Exp losion Exhaust (Suction) Fig. 51.—Effort tending to Rotate Crank in each of the Four Strokes. (Pres-sures opposing motion of crank-pin are shown as negative.) For indi-cated diagram represented, see Fig. 41. line and the indicator diagram lines are carefully…
Internal combustion engines
