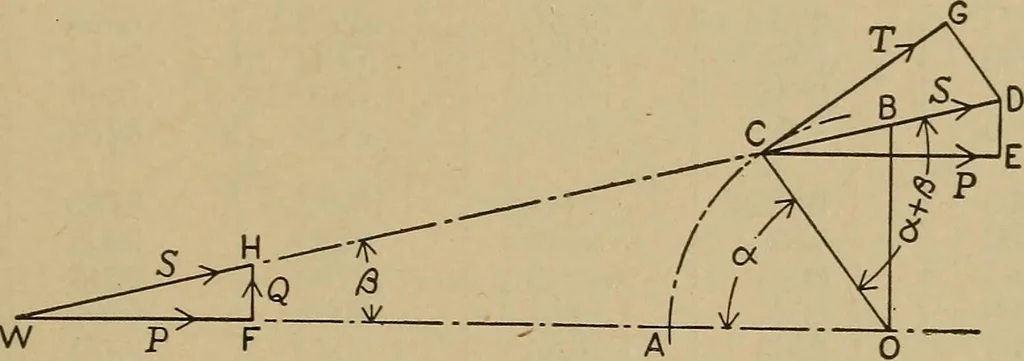

From triangle WFH or CED, s = -^- cos^ § 32 (d)] WORKING FORCES IN THE ENGINE. 315 and in triangle CGD, right-angled at G, and with angle CDG = angleOCD = (a + (3), sin {a + jS) T = Ssm{a-\-^) = P cos |8 (177) If we apply to this expression the effect of making the rod infinite —which make^jS zero… … Fig. 174. — Tangential Force on Crank. (e) Determining Tangential Force. — Having drawn the dia-grams of effective driving force, like Fig. 170 III or Fig. 172, andlocated on them a series of ordinates corresponding to a number ofequally-spaced crank angles, the next step is to find the turning…
