The internal combustion engine; a text-book for the use of students and engineers (1915)
Wimperis, Harry Egerton, 1876- · New York, D. Van Nostrand company · leaf 48

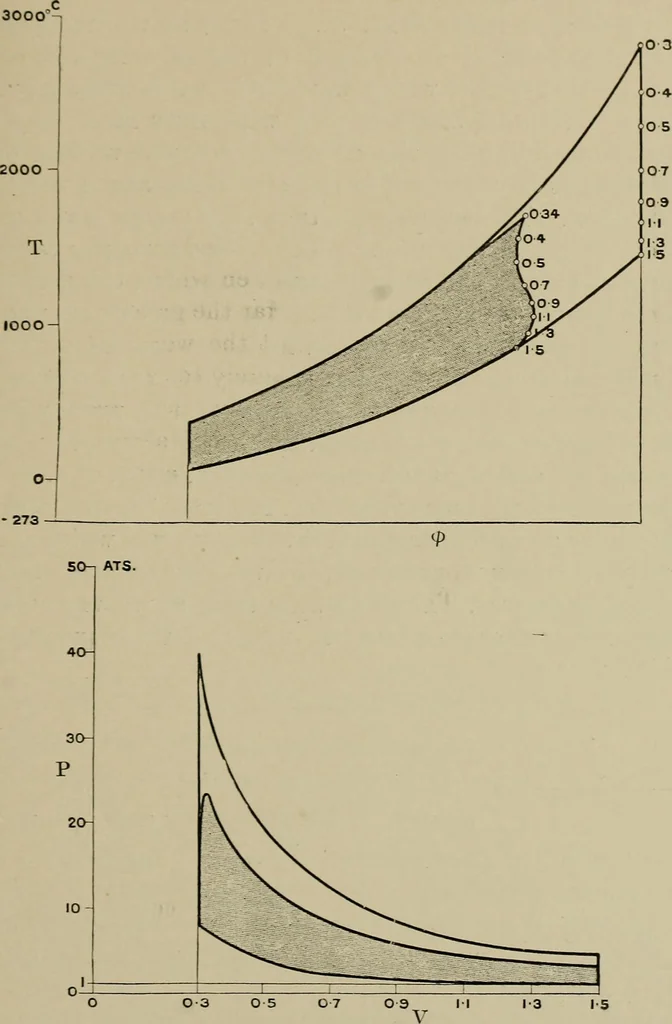

ses are considered to havetheir relatively high temperature and pressure reduced tothose of the incoming charge, the volume being kept constant.In an Appendix to an Institution of Civil Engineers report *Captain Sankey has shown a number of PV and T 99 diagramsfor the same gas engine cycles, and by… … Fig. 10. an ideal engine, whilst in the shaded portion is given thesame diagrams for a probable actual engine. The wavy partof the entropy curve shows the expansion period of the cycle. 30 THE INTERNAL COMBUSTION ENGINE [chap, n It has been drawn to show the loss of heat to the walls andpiston…
Internal combustion engines
