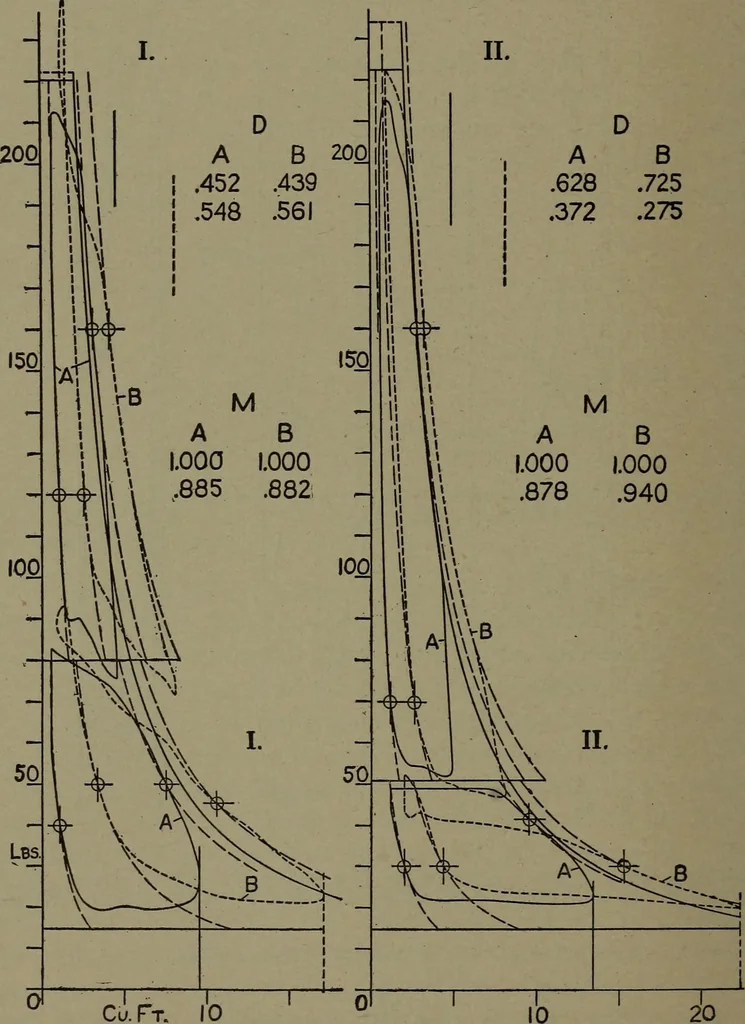

h-pressure diagram is shoved out more than half-way be-yond the one-pound saturation curve. We have here a striking example 252 PERFORMANCE AND EFFICIENCY OF ENGINES. [Chap. VI. of the influence of speed upon steam distribution; as noted beneath thediagrams, the cut-offs (by the valve) are nearly… … : Cu.Ft. 10 Fig. 134. — Diagrams from Compound Locomotives, Pennsylvania Railroad Tests, St. Louis, 1904. I. Cross-compound (two-cylinder), Consolidation type, 23 and 35 by 32 in.,ratio 2.34: No. 3 under Fig. 103, No. 7 in Table 13. Diagram A, test 308 (in origi-nal report), r.p.m. 80, cut-off…
