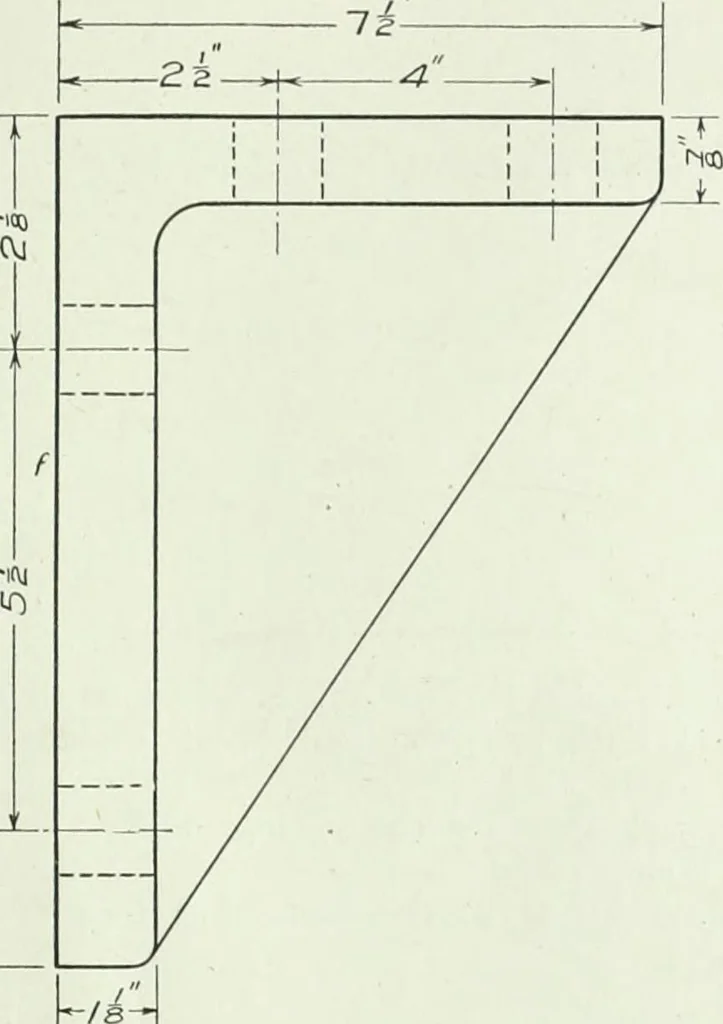

ows that the flat surface the line repre-sents is to be finished or machined to the dimension shown in the drawing. The finish mark mostcommonly used is f , as shown in this drawing. Where such mark appears, the pattern-maker orblacksmith must leave extra stock. The dimensions on a working drawing…
