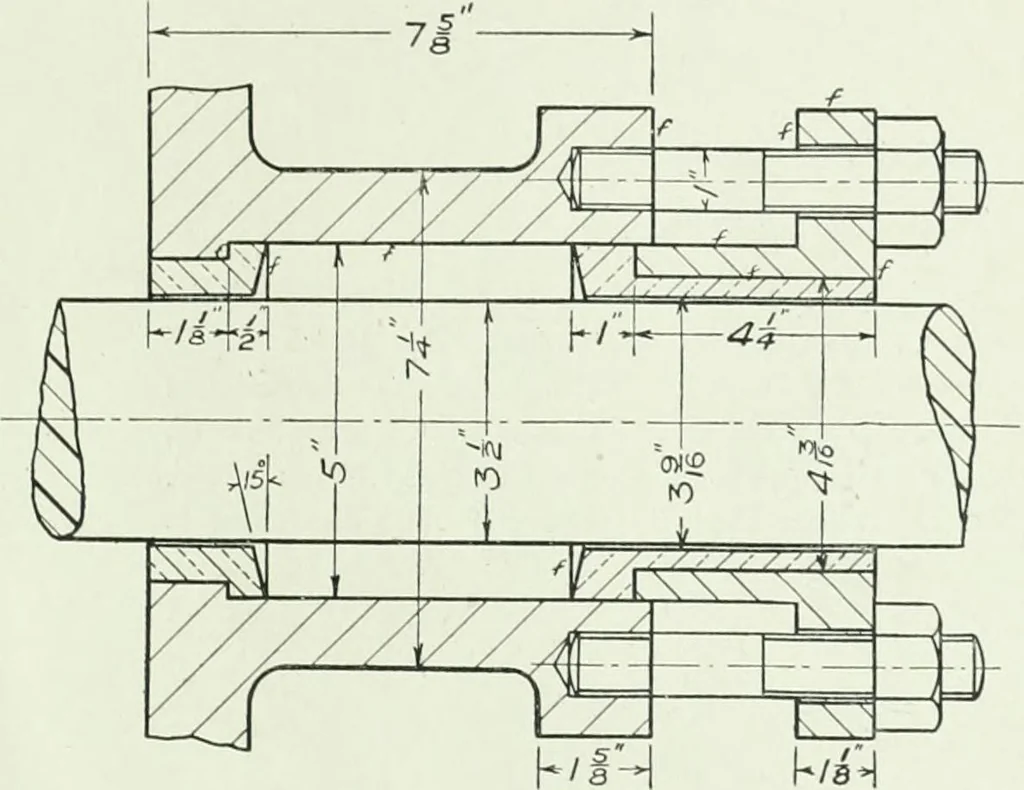

End Elevation Here (56 MACHINE SKETCHING AND DRAWING Stuffing Box Scale—Half size Draw to scale the stuffing box for a SV^-inch shaft as shown. MACHINE SKETCHING AND DRAWING 67
