Machine design; a manual of practical instruction in designing machinery for specific purposes, including specifications for belts, screws, pins, gears, etc., and many working hints as to operation and care of machines (1918)
Wallace, Ernest L · Chicago, American technical society · leaf 130

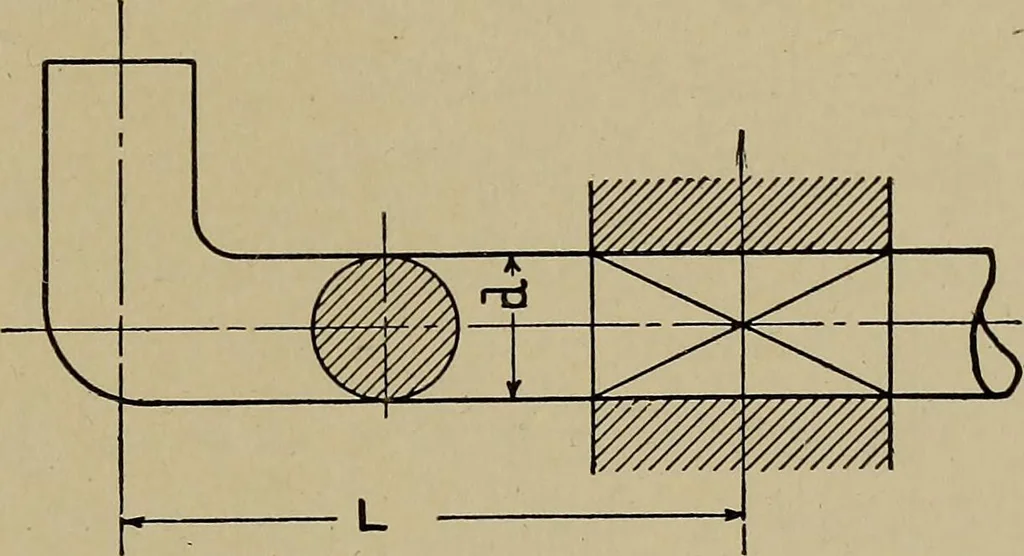

5.1 5.1(2WR) (76) Also or nd*S. Ttd2 (77) MACHINE DESIGN 117 Now, from a solution given in simplest form in Merrimans Me-chanics—which the student may consult, if desired—values forthe resultant stresses may be found. Whichever of these is the crit-ical one for the material used, should form the… … Fig. 68. Bending with Torsion the bearings. As it is usually customary to figure the maximummoment as taking place at the center of the bearing, the length L,which determines the bending moment, is taken to that point. Thetheory of the stress induced in this case is complicated. In orderto make the…
Machine design
