An introduction to the study of Gothic architecture (1877)
Parker, John Henry, 1806-1884 · Oxford: J. Parker and Co. · leaf 39

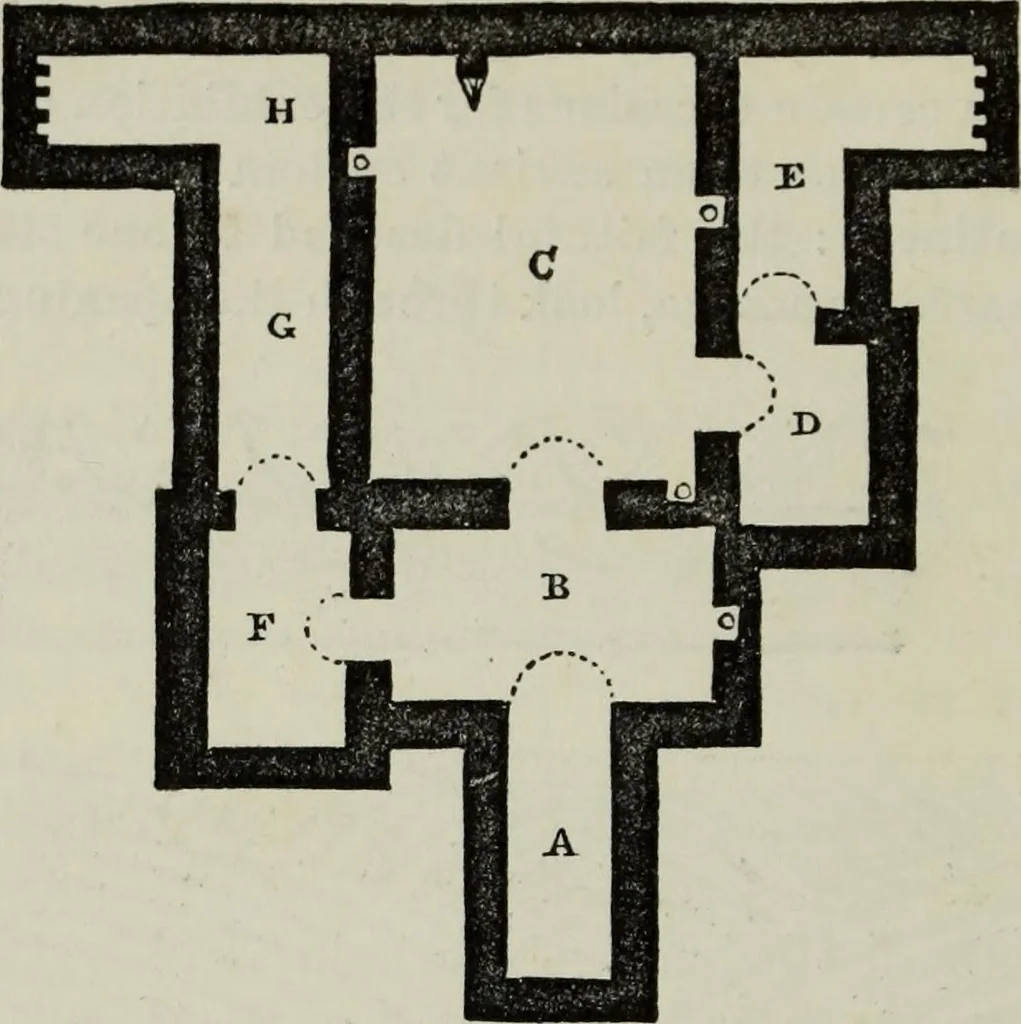

14 TEE ANGLO-SAXON PERIOD. … 6. Plan of tlie Crypt at Hexham. A. Present entrance, a square pit 7 ft. long by 2 ft. 7 in. broad, and about18 ft. deep to the bottom level of the crypt. B. An arched chamber, 9 ft. 2 in. by 5 ft. 7 in., height to top of roof 9 ft.;recess in the wall, cavity at the bottom. C. The cell, an arched…
Architecture, Gothic
