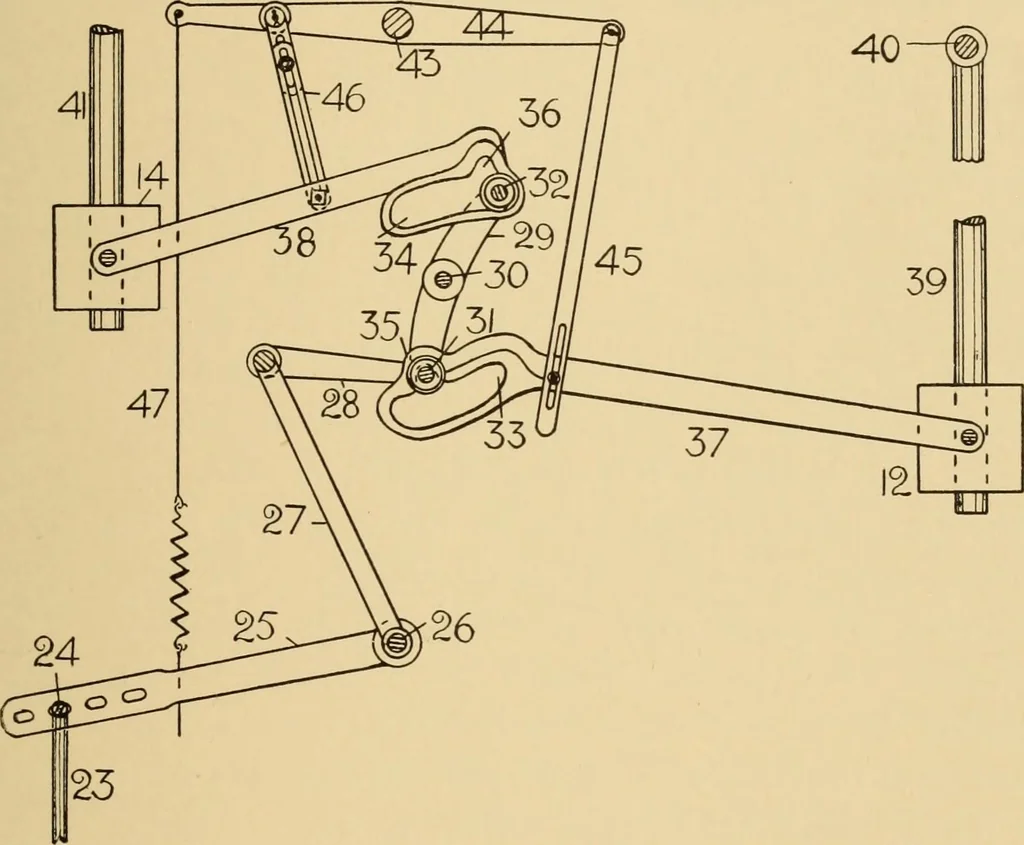

44elevates the link 45 and cylinder arm 37 until the stud 31 is clear ofthe recess 35, and card cylinder 12 remains stationary. When thequadrant lever is released and lifted to the top, the action of all theparts just described is reversed and the cylinder 12 is brought intooperative action, while… … Rothwells. Fig. 117. Automatic Cross Border Jacquard. This mechanism is designed to produce thechanges from one card cylinder to the other auto-matically, and also to reverse the pattern cards at will. Fig. 118 isa side elevation of the right hand motion, showing the various detailswhich connect…
