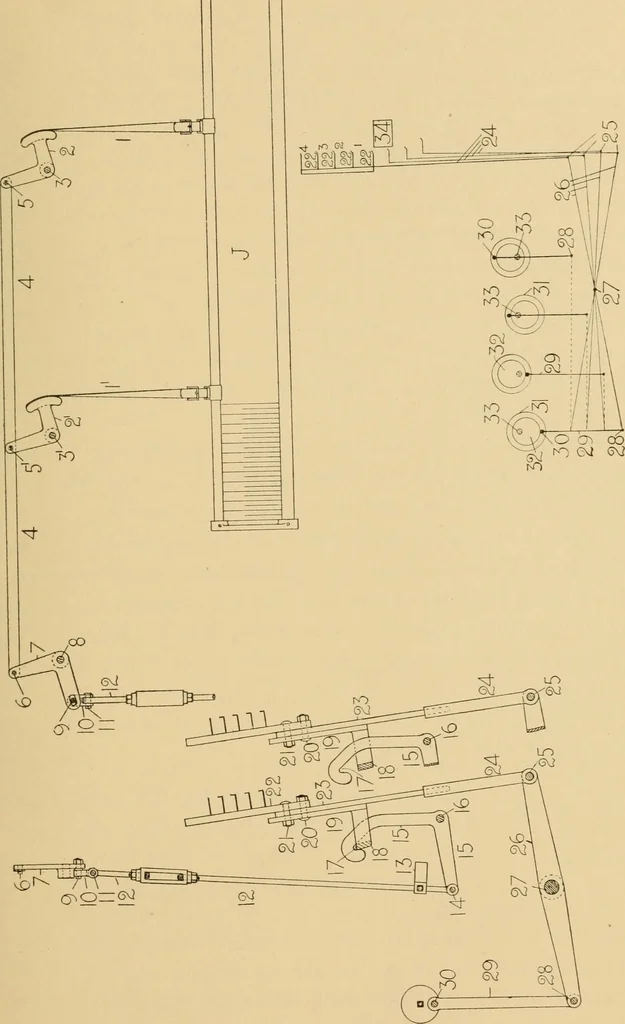

ounded with and rotated, according to pattern, by a clutchwheel, under direct control of the pattern cards. The pin 30 incollar 31 is linked to a second clutch wheel under similar butindependent control. This double eccentric and compound arrange-ment is known as Whitesmiths patent; it controls and… … be &- 4- H _§- >-l bio 2l8 JACQUARD MECHANISM AND HARNESS MOUNTING. respective shuttle boxes 221, 222, 225 and 224 level with the shuttlerace 34 as required by the pattern. With the movement of the lay and shuttle boxes 22 towards the harness, the tongue 18 in angle ironMechanism. . &…
