Bradbury, F. (Fred) · Manchester : John Heywood Ltd. · leaf 260

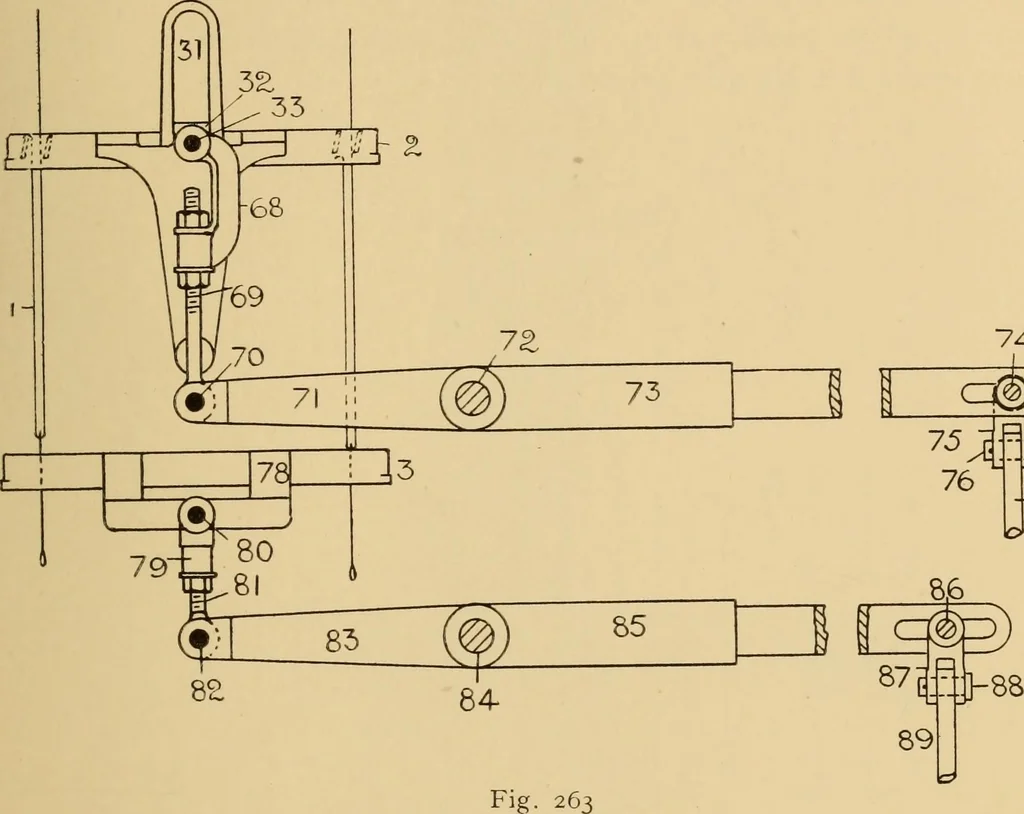

cends and through its connec-tions produces a downward movement in the sinking board 3 andlowers those uprights which are to form the bottom shed. As theeccentric completes its rotation the foregoing motions are reversedpreparatory to the next pick. The principle of this Index and fine pitch… … 1 ITqfe) 7-5^76 -77 The Centre Shed Jacquard. As the title suggests, the centre shed Jacquard machine is builtto produce a warp shed on the closed and centre shedding principle.It consequently merits all the advantages which characterise thisprinciple of shedding, but it also inherits all its…
Textile machinery
