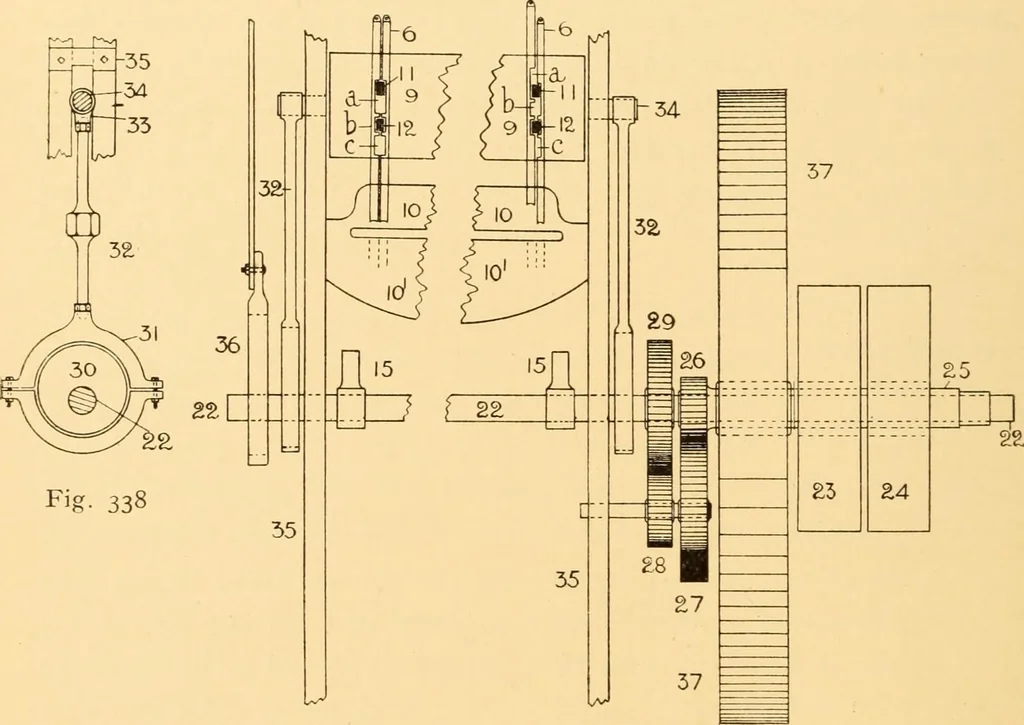

etached side view ofthe eccentric and its connection with the punch box. From the main driven shaft 22 the Jacquard head is recipro-cated by an eccentric 36, and the usual connections. The cardcylinder is vibrated through the influence of a swan neck levercombined with the Jacquard head. 37 is a… … The originally cut cards 39 which have to be repeated are placed over the Jacquard cylinder 38combinedM , . in the usual way. The cards 41 to be stamped as duplicates, which are blank except for the peg and lace holes, are automatically fed, through the agency of the card cylinder 40, between the…
