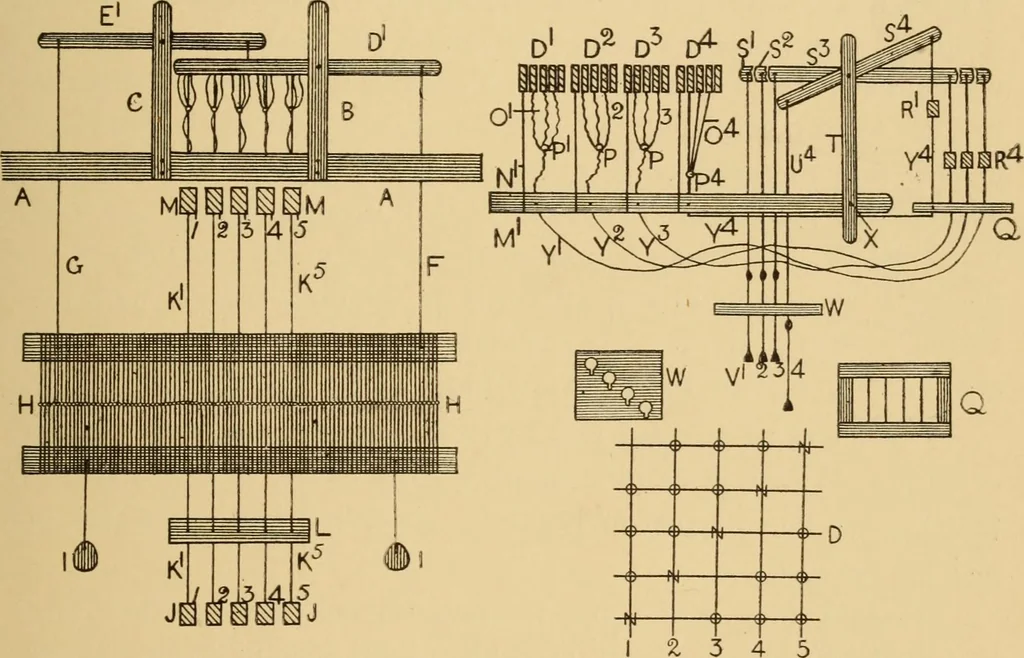

d4 and throughthese elevate the heddles. In group d4, where cords o are tightened as already described,the march lever m1 as it descends pulls in sympathy the first fourjack levers in d\ The shed thus formed gives one warp and fourweft for the first fifteen shafts, and four warp and one weft for… … Fig. 46. Fig. 49. Fig. 50. Fig. 48. If now it be assumed that all the cords u are depressed and theknots placed in the narrow slits of the board w, where they mayremain for as many repeats of the twilling weave as desired by thepredetermined pattern, then through the connections describedabove, the…
