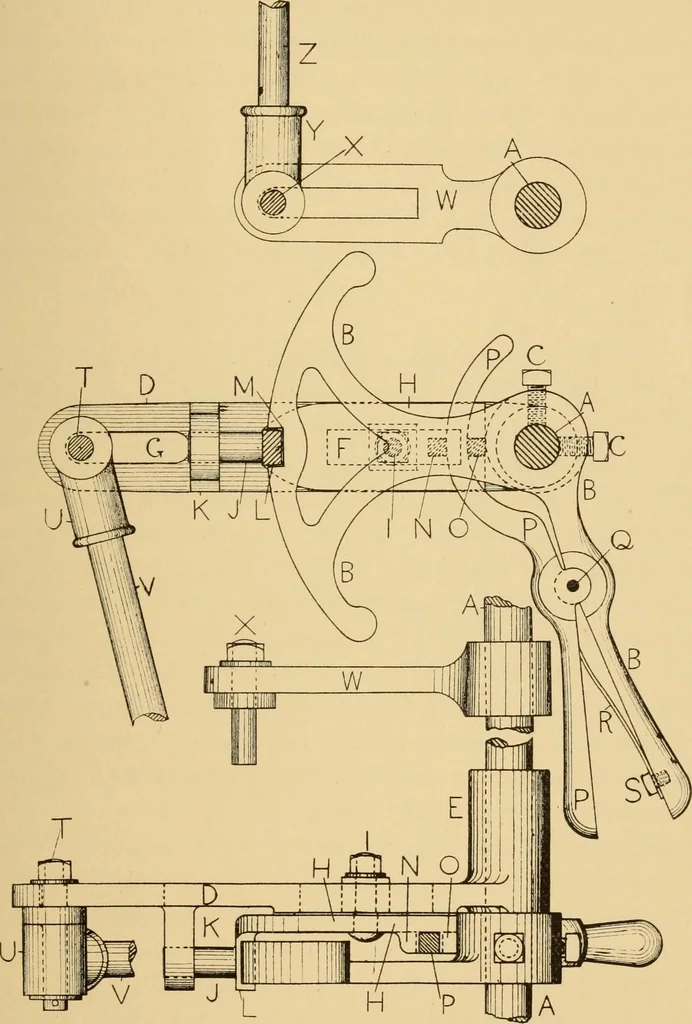

jection k cast with the lever d. A small rectangular stud l iscast upon the slide h at the point where the slide and spindle meet.Normally the stud l fits closely into the recess m formed in the centreof the arc circle in the quadrant lever b. Two other studs n and oare also cast on the face of the… … Fig. 8: Fig. 81. Fig. S3. which forms an arc of a circle, fits closely but is free to slide betweenthe two studs n and o. A strong steel spring r is set screwed at s 94 JACQUARD MECHANISM AND HARNESS MOUNTING. to the lower arm of lever b. The free end of the spring r presseswith its maximum energy…
