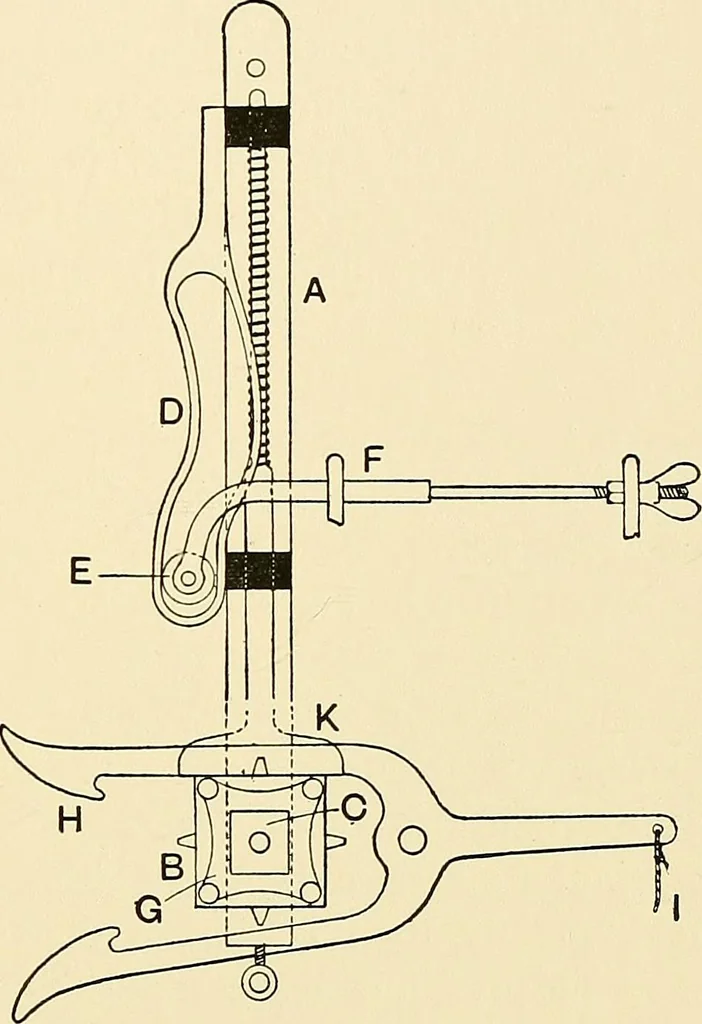

of the lantern, while thelower prong is hung clear all the time the cylinder revolves in onedirection; when the cylinder is swung out by the action of the shaftin the griffe block the edges of the lantern come in contact with thehooked end of the upper fork prong. Catching in the corner… … Fig. 288.—Method of Operating Cylinder of Jacquardfrom the Griffe A, Batten of cylinder. B, Card cylinder. c, Bearings ofcylinder. D, Swan-neck guide. E, Bowl of griffe-rod.F, Rod from griffe-block. G, Lantern on end of cylinder.H, Upper fork. i, Cord for reversing motion of cylinder.K, Head of…
