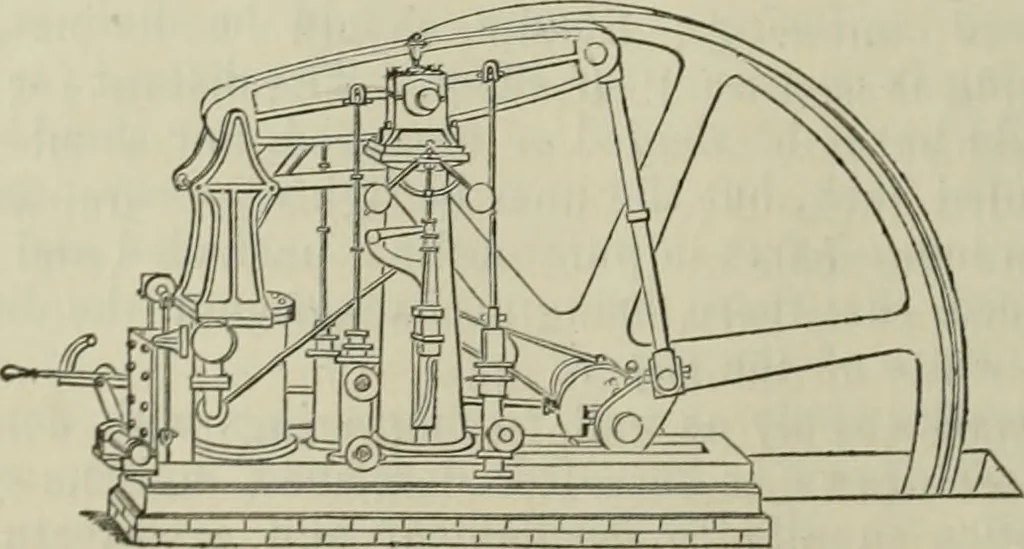

ed at the side of it. The kind of isometrical drawing thus obtained, differs from thatusually practiced by the reduction of the proportion of side and topdimensions to those of the face, but the result of this reduction is toremove much of the obvious distorted effect. The system cannot be… … Fig. 1. Figure 1 shows an outline sketch of an engine machine directly Remarks on Pseudo Perspective. 15 from a working drawing to scale. This sketch is such as is requiredby the engraver on the block of wood before engraving and shading.
