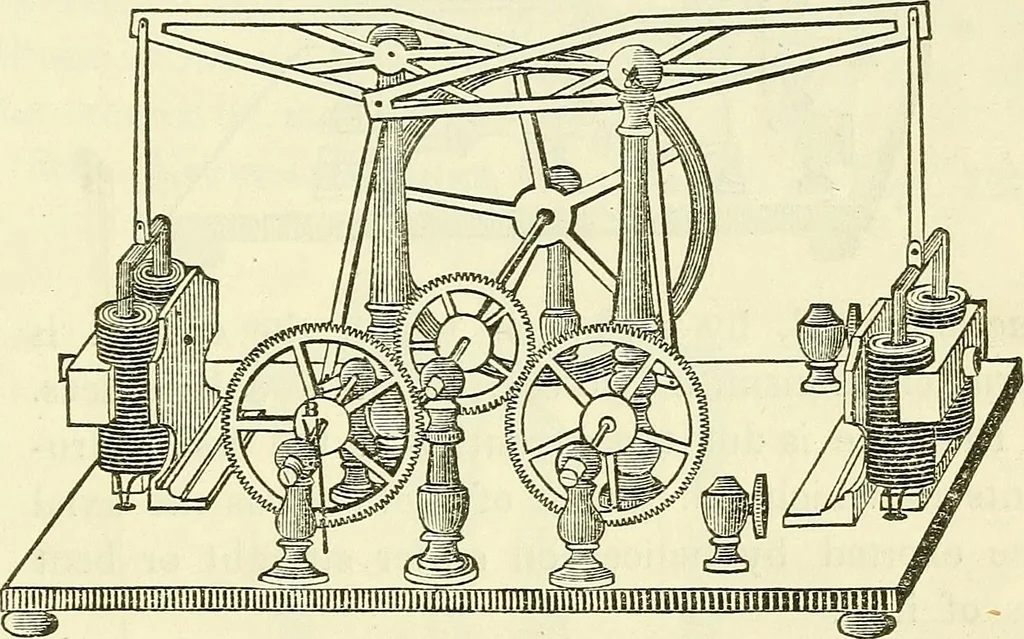

are fixed horizontally in the same line. The iron bars SINGLE BEAM AXIAL lilNGINE. 183 are connected at their bends by a transverse bar,through the ends of which pass guiding rods. ThesesUde in the tops of the small pillars, and keep thebent bars in place. On the shaft of the balance-wheel is the… … connected with a bent bar moving in an uprightdouble helix, is represented in Fig. 124. The mo-tion of the beams is communicated to a single fly-wheel, by means of toothed wheels moved by cranks.294. Single Beam Axial Engine. — Fig. 125represents an instrument in which a reciprocat-ing motion is…
