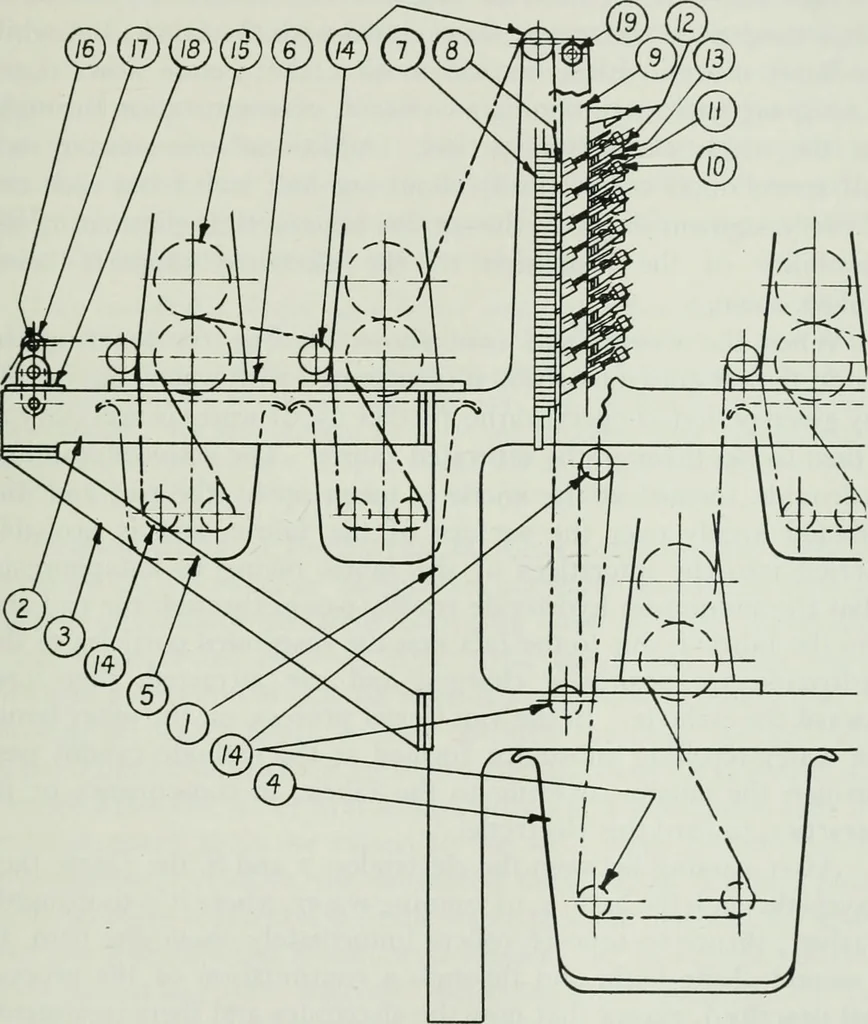

els up over the brass idler roll,14, and passes downward between the electrodes, 7 and 8, betweenwhich a current of from 30 to 60 amperes flows, the current densitydepending upon the nature of the fabric and the character of the Oct., 1921.] Water-proofing of Fabrics. 505 treatment required. The… … I. Frame. 2. Frame Extension. 3. Frame extension support. 4. Wash tank. S- Solutiontank. 6. Quetch frame. ?• Anode-aluminum. 8. Cathode-graphite. 9. Graphite support-side. 10. Graphite adjuster. 11. Graphite support-end. 12. Acetate trough support. 13.Acetate trough. 14. Idler roll-brass. 15.…
