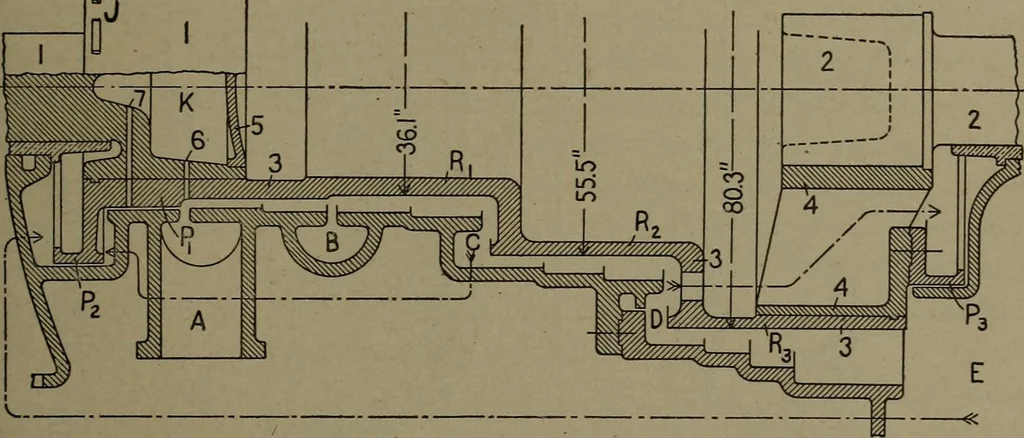

drum forms the low-pressure end of the Oerlikon-Rateau turbine; andin the marine Curtis turbine — see Art. (g) — the last three or four3-impulse stages are thus mounted on one wheel. With the latter typeof staging only the nozzle rings, not the intermediate guides, need runclose with the rotor. (d)… … Fig. 356. — Section of Rotor and Casing, 8000 Kw. Tosi-Parsons Turbine, to illus-trate Fullager system of balancing and construction of rotor. Stodola IV,450; Power, Oct. 13, 1908. Scale 1 to 42. used Fullager system. Pistons Pi and P2 remain as before, but thelarge P3 of Fig. 25 is replaced by the…
