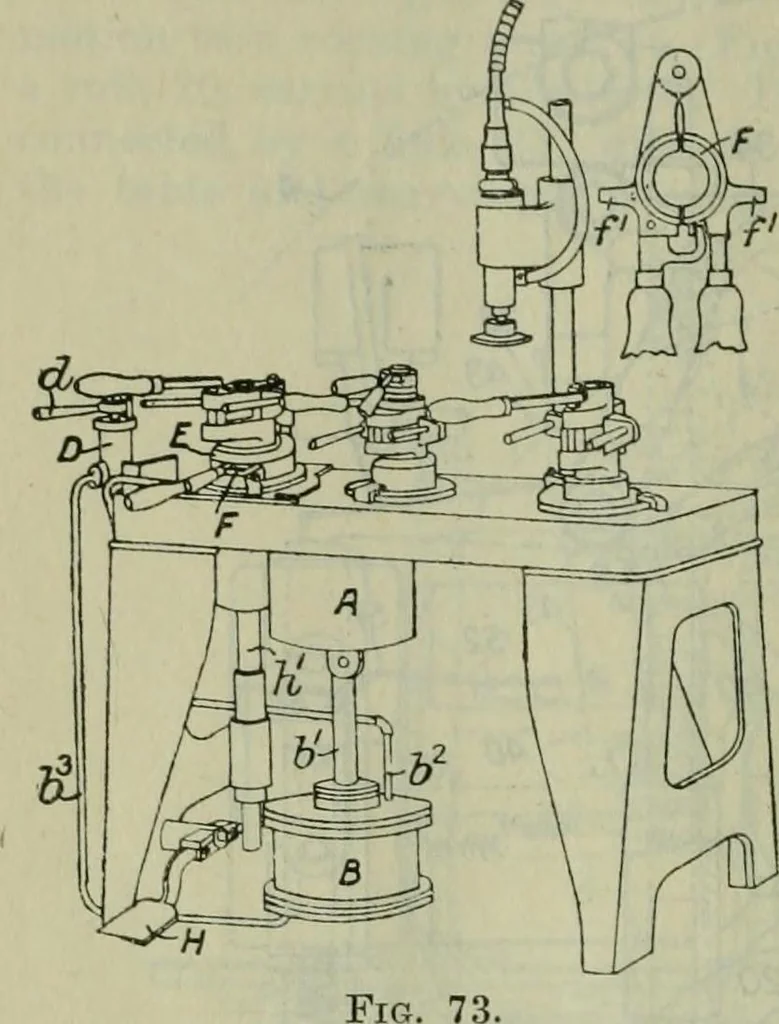

ed neck-rings, e, aresecured to arms, e^, hinged together at e-, and are adapted to fit inrecesses in the brackets, a^, h^. The sliding bracket, g, carrying theplunger is moved up- and down on a guide, fj^, by a lever having twospring-controlled arms, r/-, r/^, mounted on a pivot, //*, and… … MACHINERY FOE, THE WORKING OF GLASS. 146 plunger, /, and suction arraugeinent for the parison moulds. Thesuction pipe, /^S is connected to a cup, p, which is svipported in anopening in the annular flange, fp, of the bracket, //, by springs, g^,upward movement being limited by a flange, /, on the…
