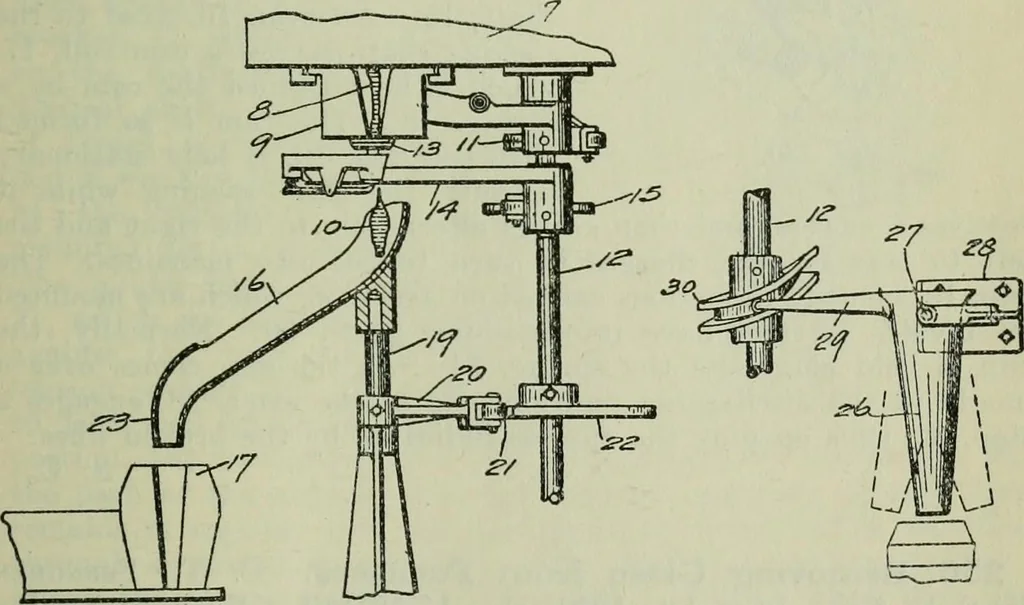

Fig. 137. 254. Apparatus for Transferring Glass to Moulds. R. La France (Assignor to the Owens Bottle Machine Co.)(U.S.A. Pat,, February 24th, 1920, No. 1331511. Filed June17th, 1918).—The object of this invention is to guide formed gobsof glass into the moulds of a continuously moving machine.… … Fig. 138. Fig. 139. moving table of the machine. The chute, 16, is mounted on avertical rocking shaft, 19, to which is secured an arm, 20, carryinga cam roll, 21, held by a spring (not shown) against the cam, 22,which is mounted on the cam shaft, 12. The cam, 22, is so formedthat it oscillates the…
