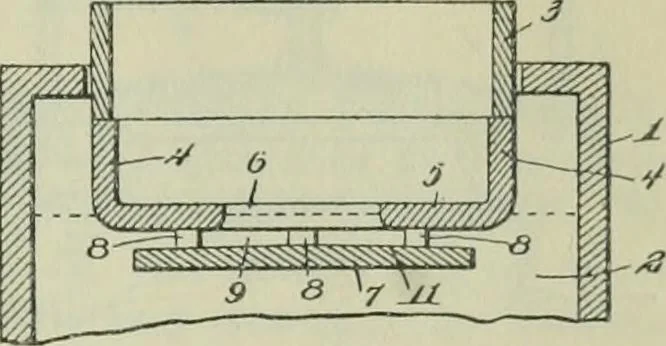

tnormally the bottom, 5, is levelwith the surface of the metal, asshown. In use, the drawing-shield, 3, is lowered to depressthe pot so* that the metal fromwhich the cylinder is drawnenters through the opening, 6. The baffle, 7, protects the metalin the pot from, radiation, and also prevents… … Fig. 157. 271. Drawing Glass Cylinders. G. L. Catlin and D.Morrison (U.S.A. Pat., February 12th, 1918, No. 1255983.Piled May 19th, 1917, No. 169711).—A drawing-pot consists of a topstone, 11, havinga depending flange orbody, 12, and areversible bottom, 16,L^fl mounted on trunnions,
