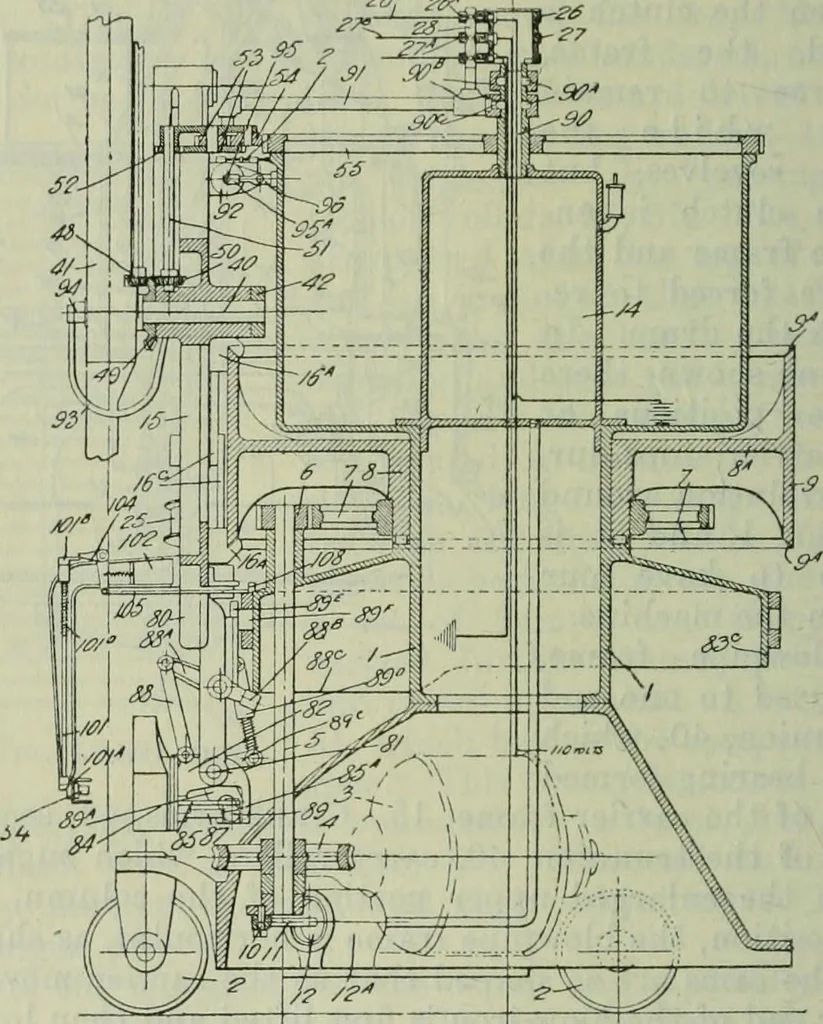

his move-ment, the latch holding the link, 73, extended is tripped by theframe, 41, so that the link collapses and the plate, 72, swings downout of the way of the gather as the frame, 41, swings into thevertical position. The link, 73, is again extended when the frame,41, moves back to the… … Fig. 196. water-box surrounding the base of the central column. Themoulds are raised out of the water by levers, 88, 88a, actuated bya cam, 88c, forming the lower edge of a flange, 83, surroundingthe central column. Another cam, formed on the face of theflange, 83c, opens and closes the mould. Air…
