Locomotive dictionary. definitions and illustrations of American locomotives, their parts and equipment, together with typical illustrations of machine tools and devices used in their maintenance and repair (1916)
American Railway Master Mechanics' Association, Wright, Roydon Vincent, 1876-1948, Mitchell, George · New York, Chicago : Simmons-Boardman Pub. Co.; [etc., etc.] · leaf 631

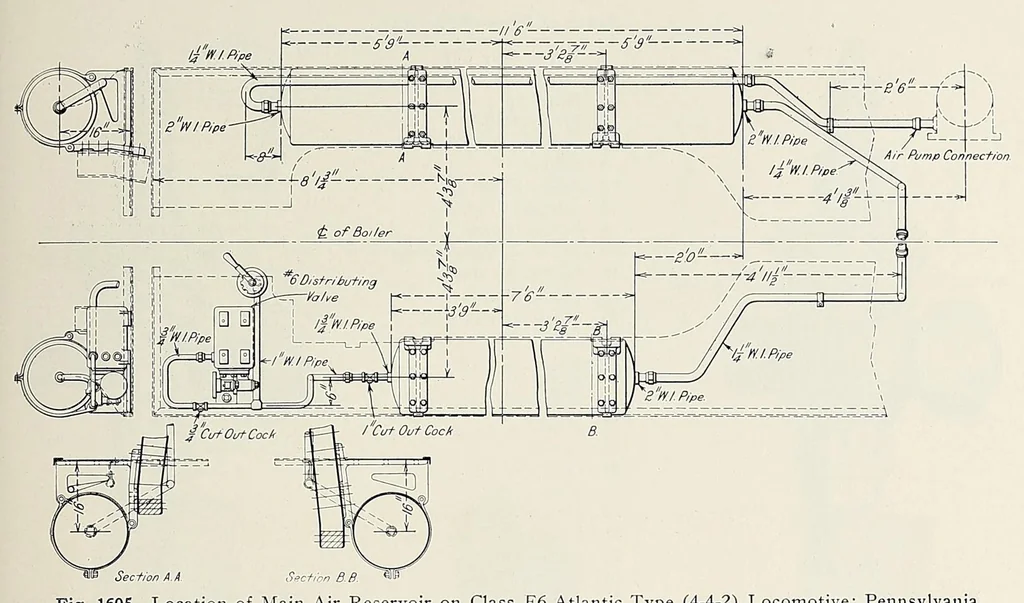

AIR BRAKE PIPING. 623 Figs. 1605-1609 … Fig. 1605 — Location of Main Air Reservoir on Class £6 Atlantic Type (4-4-2) Locomotive; Pennsylvania Railroad. Fig. 1607— Pipe Connection to Main Reservoir. Fig. 1608 — Main Reservoir Ball Joint Pipe Connec¬ Fig. 1609 — Main Reservoir Ball Joint Pipe Connec¬ tion; Greenlaw Manufacturing Company.…
Locomotives
Internet Archive · Smithsonian Libraries · Public domain (published before 1931). Free to use for anything.
