Society of Glass Technology · [Sheffield] · leaf 513

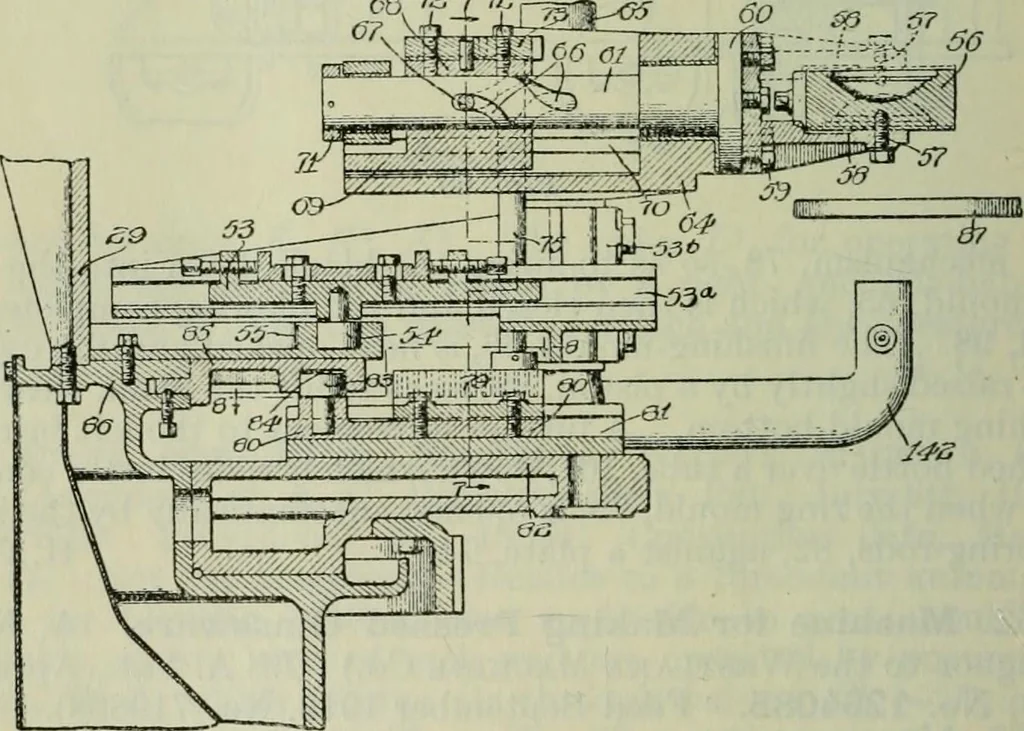

Fig. 61. a mould fixed on a rotating support and a presser for the mould-After the pressing has ceased, the mould is inverted to dischargethe article pressed, thus completing the cycle of operations whichtake place during a single rotation of the machine about its axis. 07, v- Sd 67 … Fig. 62. The gathering mechanism is just the same as that used on theWestlake bulb machine, the gathering mould, 31 (Fig. 61), beingcarried on the end of a ram, 32, which is slidable radially in ahousing, 33. This housing is mounted on the rotating frame, 30,and is capable of circular movement…
