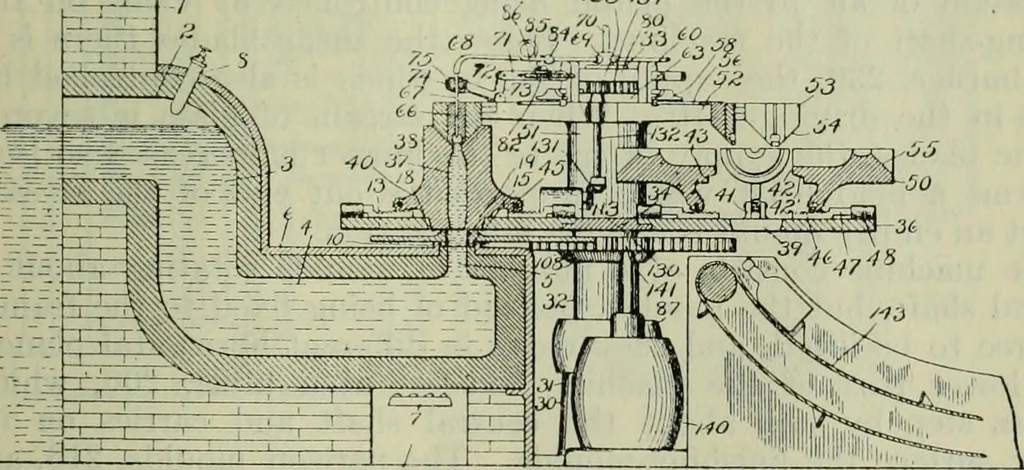

Fig. 121a. plan and in sectional elevation, is an automatic bottle-makingmachine, and the invention also comprises an automatic feed inwhich the metal is delivered upwards by gravity into the parisonmould. 33 /31 … / % in .-—:■■■( Yy— ■ ------ ±:~.-,„itieS::.: .—.*■■■■>■ »v \» Fig. 121b. )The machine comprises a central shaft, 32, about which rotatea table, 34, and four radial arms, 52, each having a hinged ringmould, 53. Beneath each ring mould, the halves, 38, of a parisonmould and the halves, 50, of a…
