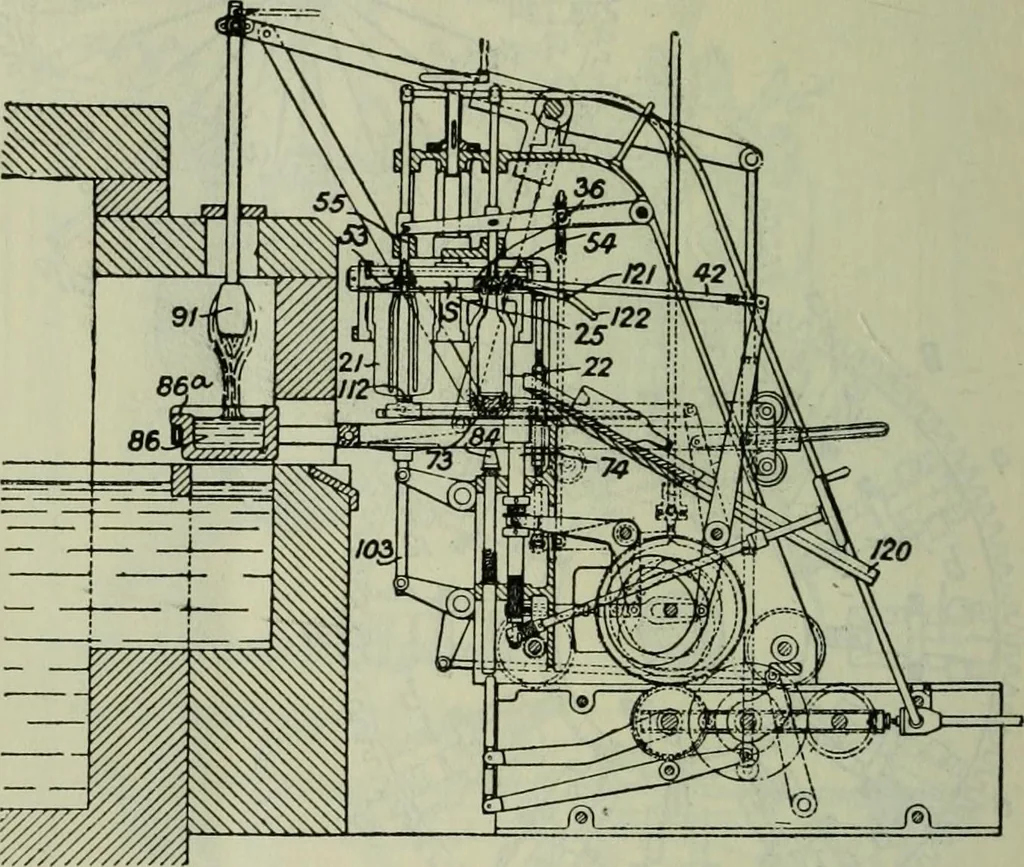

the furnace and raised by a rod, 103, below the parisonmould, 21, which is filled by suction by means of a suction-head, 53,mounted on a reciprocating tube, 55. The cup, 86, is loweredand returned to the furnace, and a knife, 112, cuts the dependingmetal from the bottom of the parison mould, 21.… … Fig. 125. the right along a slide, S, by means of a rod, 42. The mouldsare closed and the blank is blown by a blow-head, 54. The parisonmould, 21, blow mould, 22, and ring mould, 36, are then openedslightly and the ring mould, 36, is moved to its former positionabove the parison ready for the…
