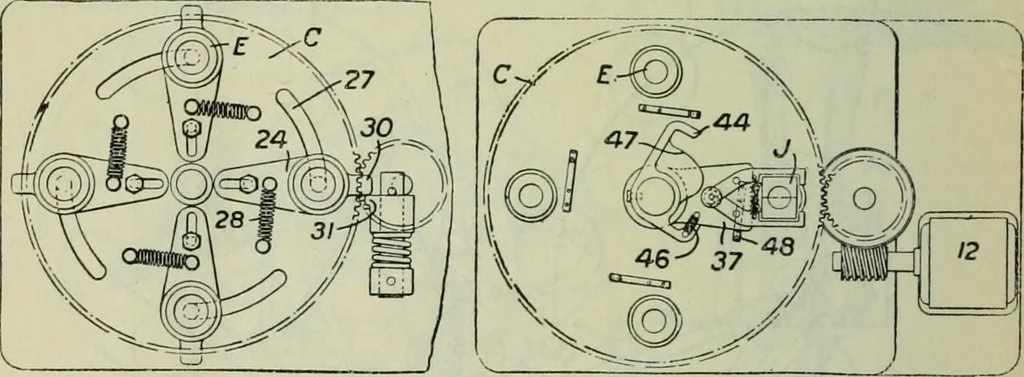

ch the moulds are carried on a rotary table, the aim beingto adapt such a machine for use with a continuously flowing streamof molten glass. According to the invention, the table rotatescontinuously and the moulds are made to lag or the deliveryapparatus is moved, so that there is no relative… … Fig. 106. Fig. 107. with a projection, 30, which strikes a spring stop, 31, when themould comes into the charging position. The mould is thus heldbelow the feed-opening until the carrier, 24, reaches the end ofthe slot, 27, when the projection, 30, is forced past the stop, 31,and a spring, 28,…
