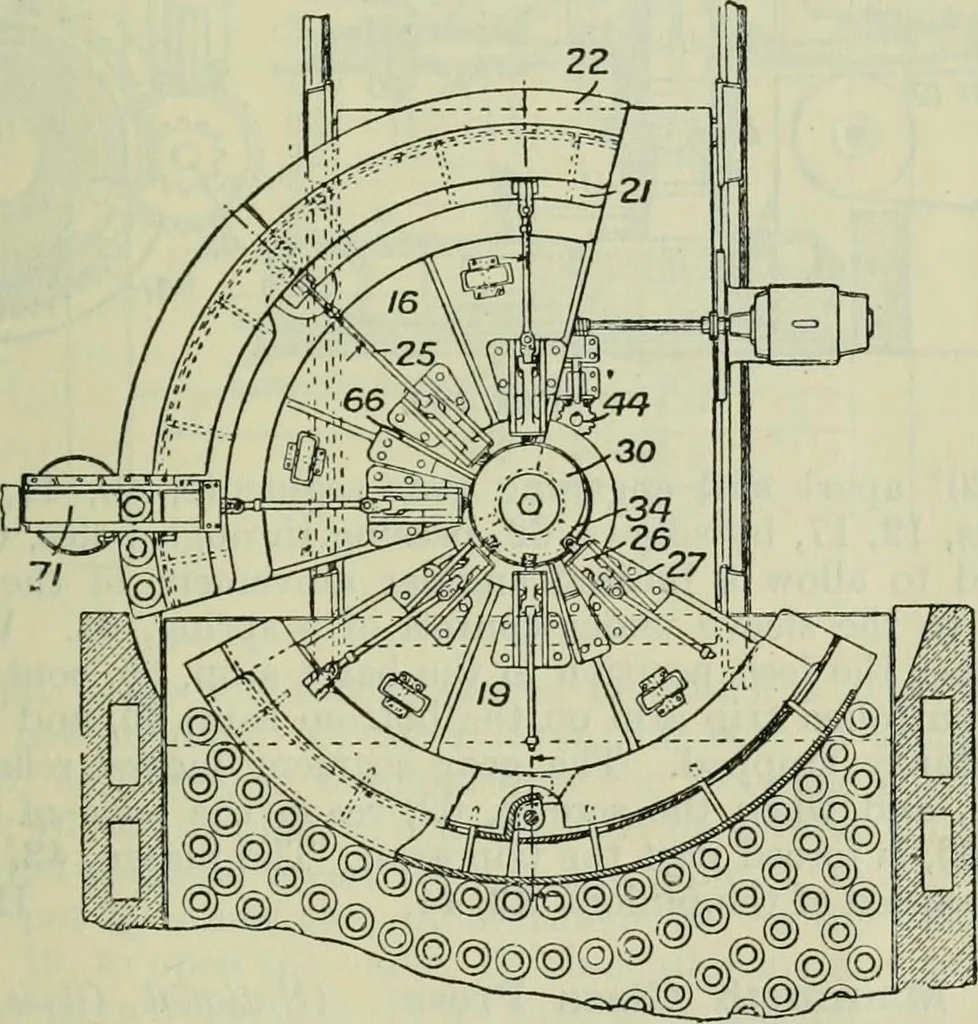

intended for delivering glass bottles, jars, etc., to anannealing-bar or oven comprises a rotary support for the articlewhich is moved at different speeds at different portions of thecycle of movement. In the construction described, two sector-shaped tables, 16, 19, each including an angle of about… … Fig. 108. the speed of rotation is doubled until the table is wholly withinthe mould of the bar, when its movement is momentarily arrested,and the shelf is withdrawn to deposit the articles on the movingband, 6. The motion is then continued at the higher speed backagain to the feeding-point. The…
Glass
