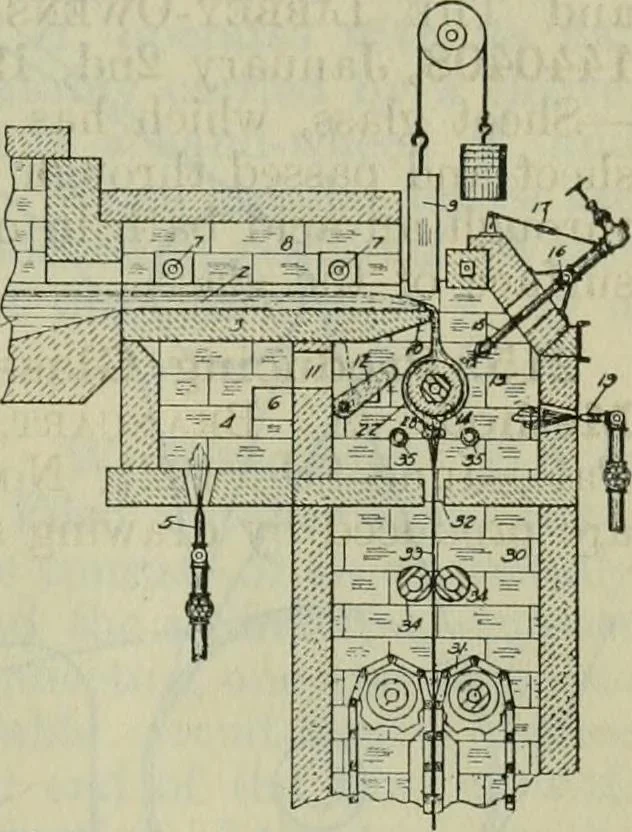

urned into a horizontal plane and isdrawn along by clamping-members which grip the sheet againstan endless moving table. According to the invention, worms carried by the clamping-members, and revolved by racks fixed alongside the table, grip theedges of the sheet and draw them outwards, thus… … Fig. 112. 154 JOURNAL OF THE SOCIETY OP GLASS TECHNOLOGY. this device, the endless carrier or draw table is made in the formof an endless flexible chain of closely intenneshing links. Theedges of this table are composed of a scries of loosely interlockedlinks which are drawn outwards by cam guides…
