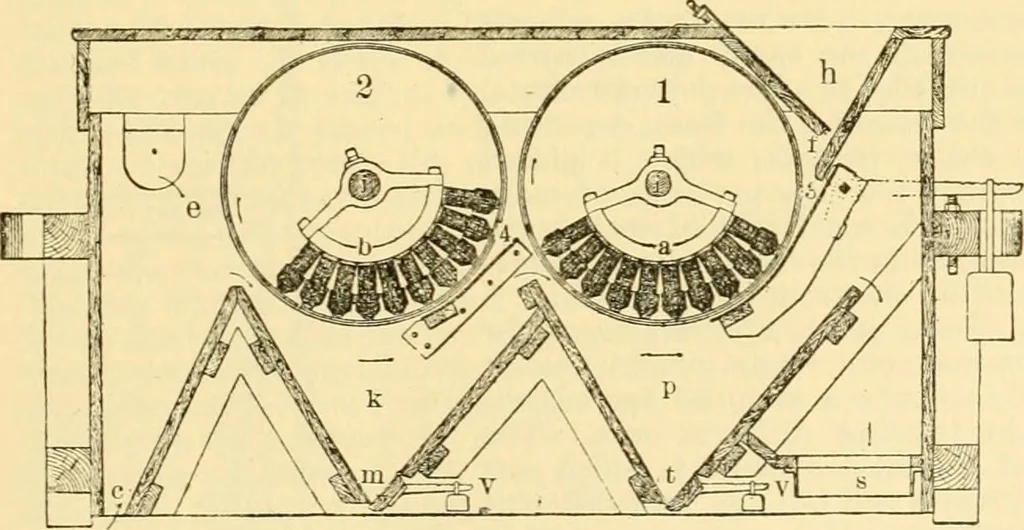

ometimes called the Monarch, consists of a partially closed chest,having an opening at/,Fig. 13, from the feedhopper, h, through whichthe ore is delivered to tliemachine from a storagebin, provided with meansfor regulating the flow ofore. Other openings areprovided for the dis-charge, at t,oi… … Fig, 13.—Ball-Xorton magnetic separator. kept sealed against ingress of air at those points by means of hinged and weighted valves^V V, which discharge the products from the hopiaers, p and k, continuously, and in thesame proportion as received from above, when a sufficient weight has accumulated…
