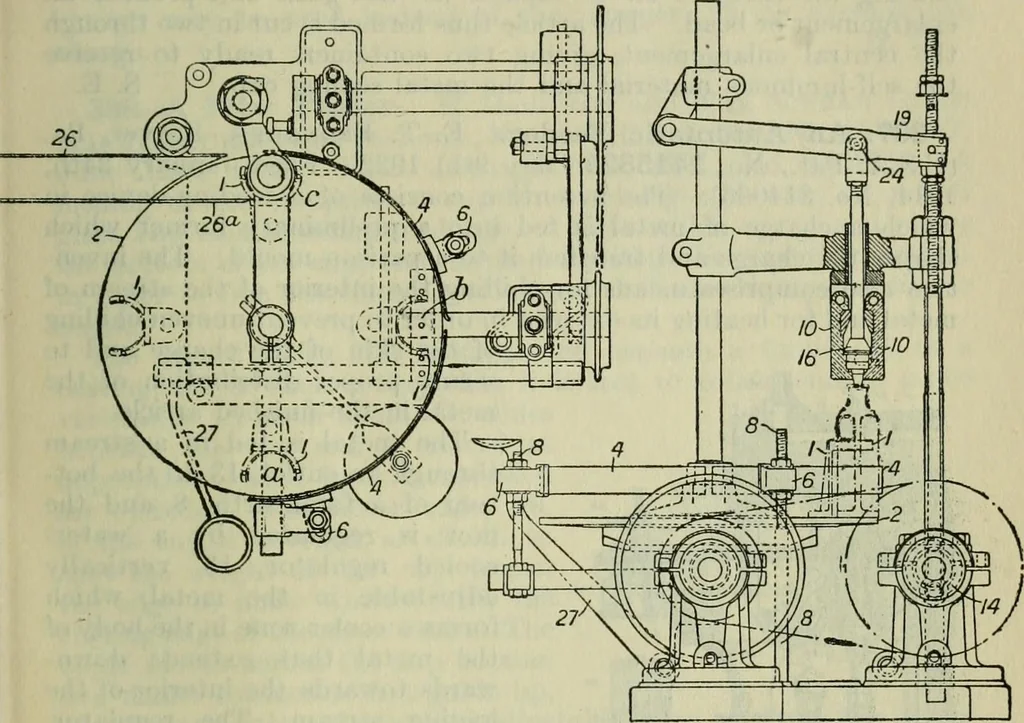

a rotatable table on the machineand the neck is then melted and shaped. The pockets, 1, Fig. 175,are mounted on the rotating table, 2, and consist of brackets whichare partly open on their radial sides and are completely open ontheir outer or peripheral sides. After a bottle has been depositedin a… … Fig. 175. supported by brackets, 6, on long studs, 8, and they may be adjustedradially or vertically. At the station b the mouth of the bottle issoftened by a bunsen flame, and at station c the softened mouthis shaped by the forming mechanism. This consists of a plunger,16, to which forming-arms,…
