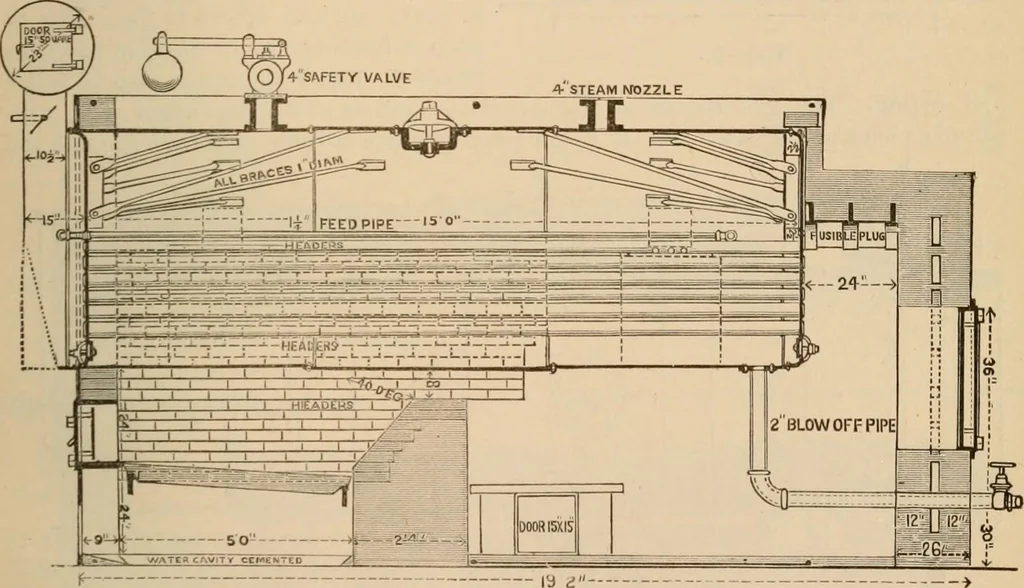

done. In most cases chimneys have been planned with special referenceand adaptation to them, so that we have not recommended them except where anentirely new boiler-house and chimney were tobe erected. A more common size of boileris 16 feet 8 inches long outside and GO inches in diameter,… … Fl(!. 1. long. They are set in vertical and horizontal rows, with a broader central vertical space.The tubes are arranged to secure the best circulation of water. There are 20 braces inall— 10 on each head. Tliese braces are secured to ])iece8 of T-iron placed radially oneach head, as shown in Fig.…
