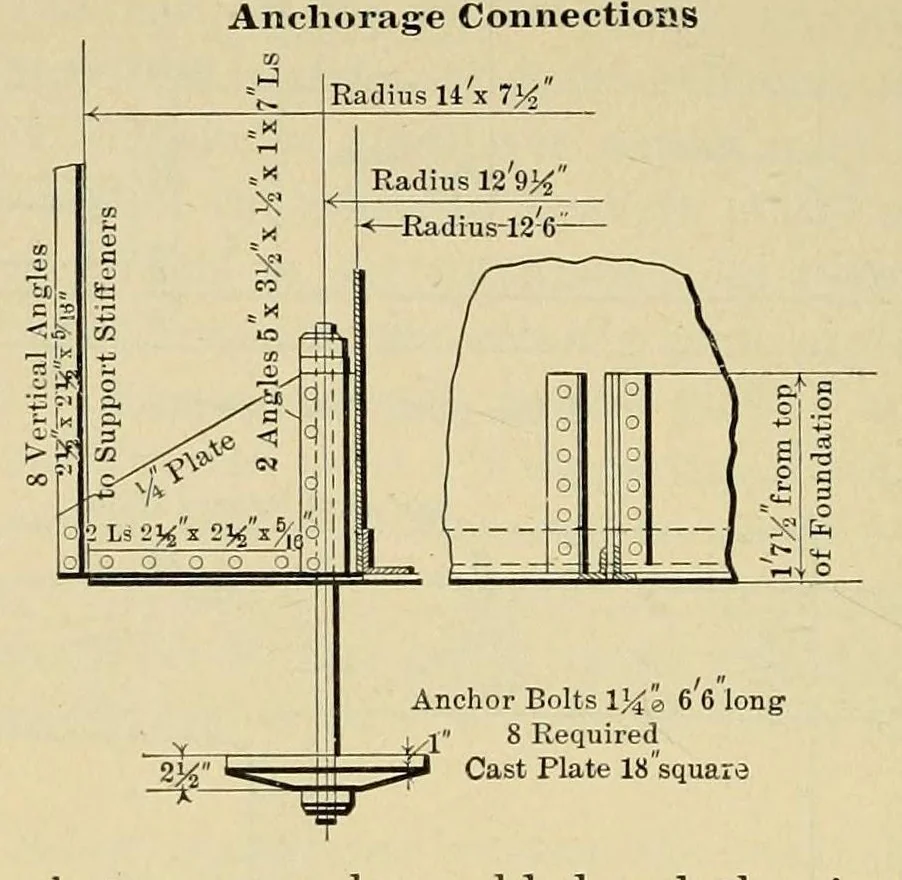

ASSOCIATION OF ENGINEEKING SOCIETIES. 540 bottom of the tank, 17-1 i" holes having been provided in the bottom for this purpose. These holes were afterwards fitted with screw plugs. Anchorage Connections … The sheets of the bottom were lap-welded and the rivet heads were not countersunk. After the iron work was completed the brick casiug was erected with the aid of exterior scaffold. The foundation rests on good stiff clay, the maximum pressure on which is about 3,700 pounds per square foot, which…
