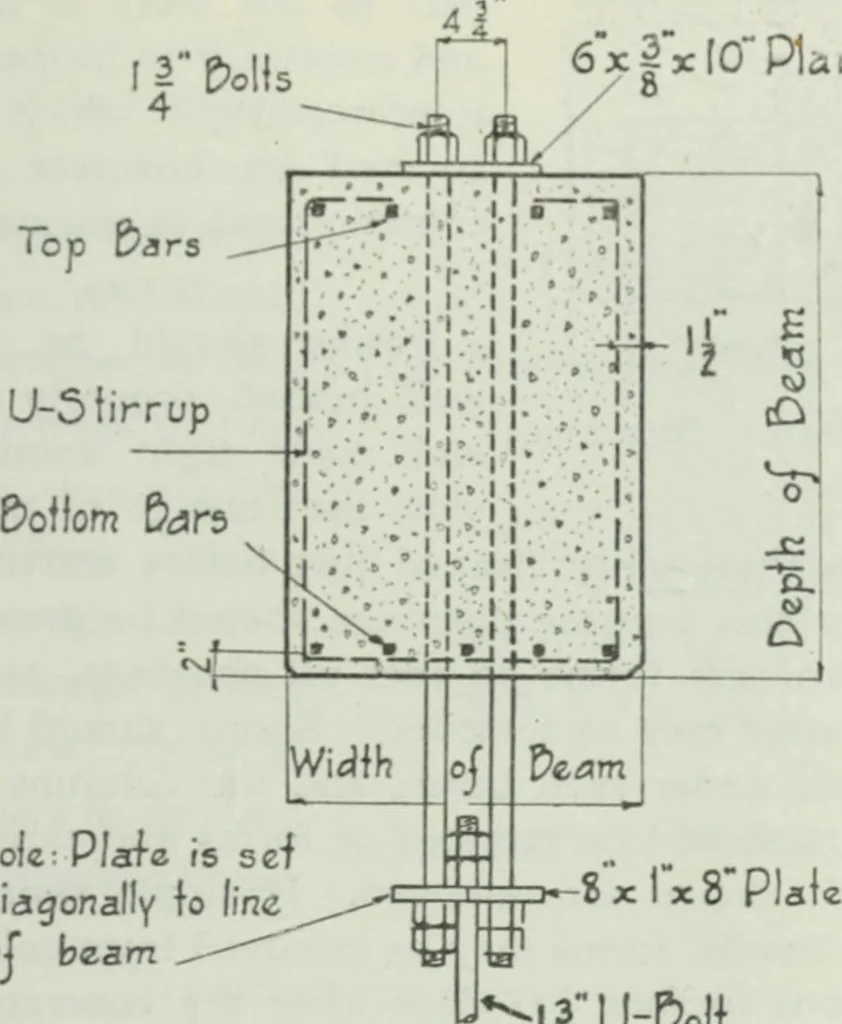

squareshape with ends projecting inwardly as shown on Figure 3 and theso-called U-stirrups for beam reinforcement should be bent in themanner indicated on Figures 4 and 5. Bends in bent-up barsshould be made at the points of support for the boilers (See Fig-ures I and 2) and the angle at which the… … Nolc; P/afc is sefjsliagonally fo \\nz^^.^^0^ hear |3U-Dolf4 &EAM Section Amd Hamger Detail 5ee Tables >A(5C for dimensions dnd relnjorcemcnf. Fig. 4. will be determined by the size of the boiler and the setting details;in general, it is assumed that the distance apart of the hangers forany…
