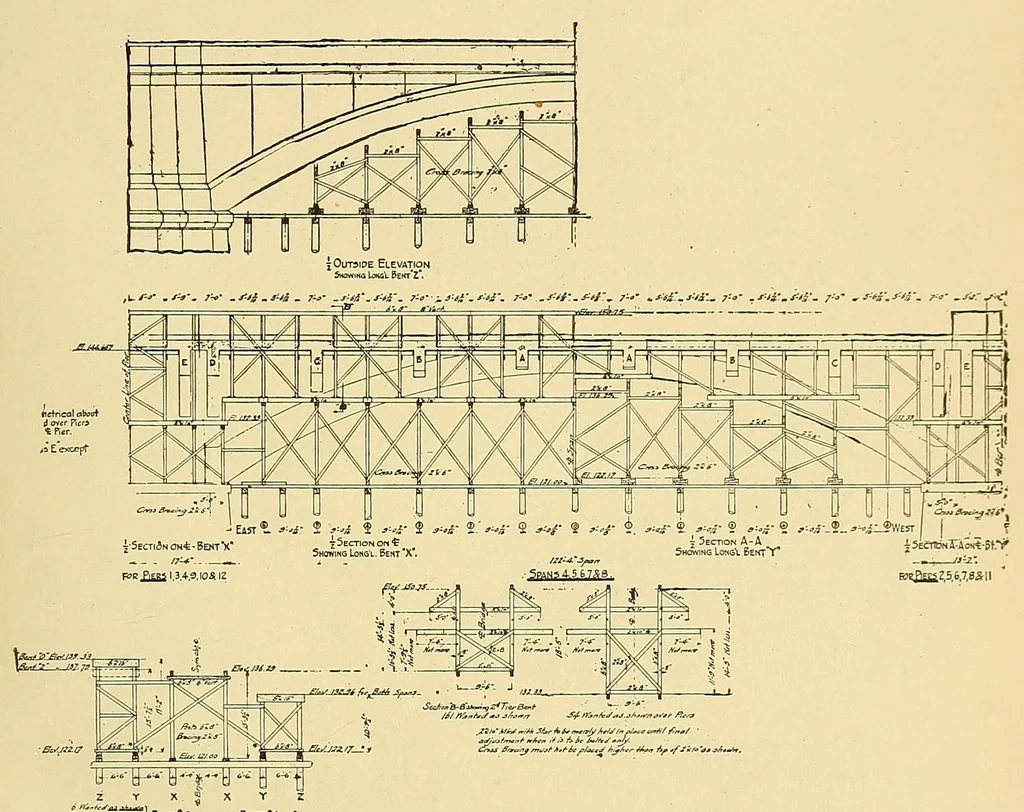

CONSTRUCTION OF THE CHARLES RIVER BRIDGE. 147 the Smith side-dump distributing cars. The cars were run to the site of the work over the double track line of 2 ft. gage, by means of a 3-ton Jeffrey electric locomotive, where they were discharged through chutes directly into place. (See Fig. 12.) … 2 Y X « X Y Z .<,/■" „ -.,:.;$", 1*1-#% »-'•.£*„ *'->£'*.*•>£* 4t*» ^=^.;k----y-f--^l-.-.-J j^JL £ Sectional PlanC-C.. Fig. 14. Falsework supporting Forms above 121, and Track. Falsework. — In constructing the superstructure, the first step was to provide suitable supports for the falsework. A…
