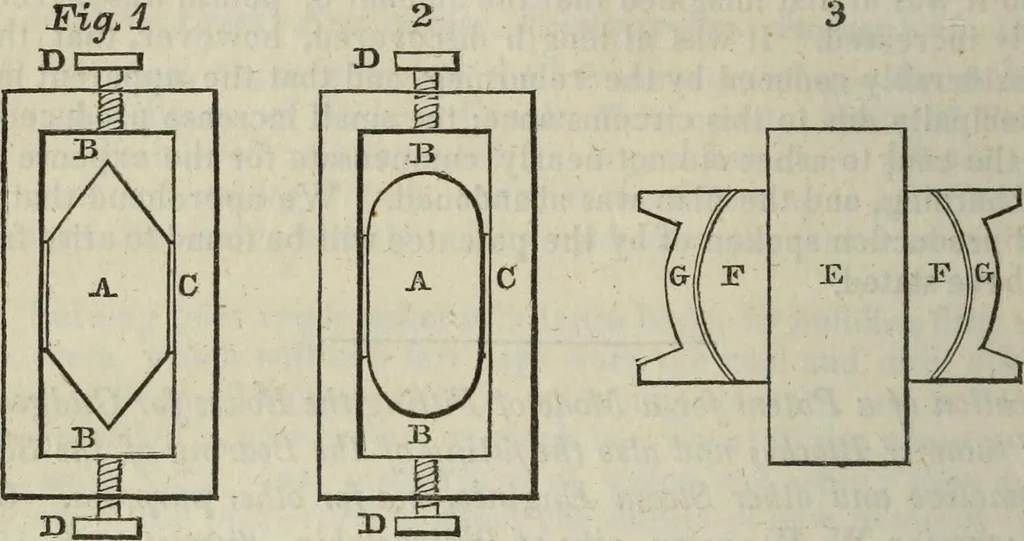

he box within which the bar slides, is provided with two brasses,or bearing pieces, with hollows, or grooves, in them, adapted to the edgesof the sliding bar, and fitting accurately between the parallel sides of thebox; when, therefore, the brasses, or bearings, are adjusted to the edges ofthe rod… … Figs. 1 and 2, cross sections of the box and slide bar, with angular andwith circular fittings. A, slide bar. B, brasses, or bearings. C, boxes. D, adjusting screws. Fig. 3, horizontal section of a plummer block and boxes, through thecentre of the gudgeon. E, gudgeon. F, box. G, cheeks of the…
