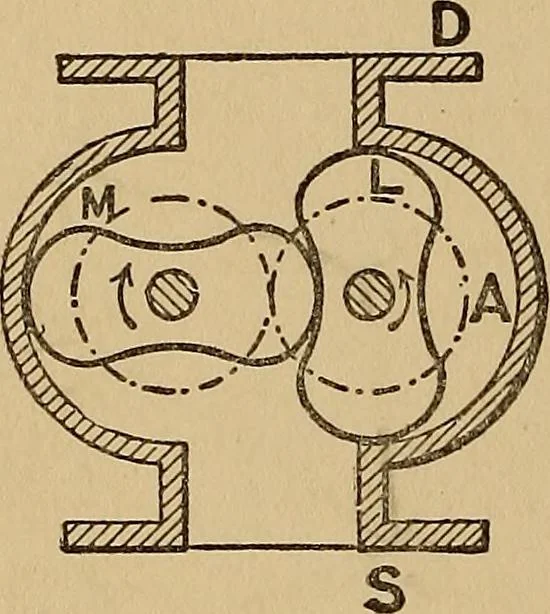

Fig. 225. delivery pipe at the flange D. As shown in Fig.224, the piston- L is rotating in a counter-clock-wise direction, and the piston M in a clockwisedirection. When the shafts have turned througha certain angle, the pistons will be as shown inFig. 225. It will be noticed that the space A,which…
