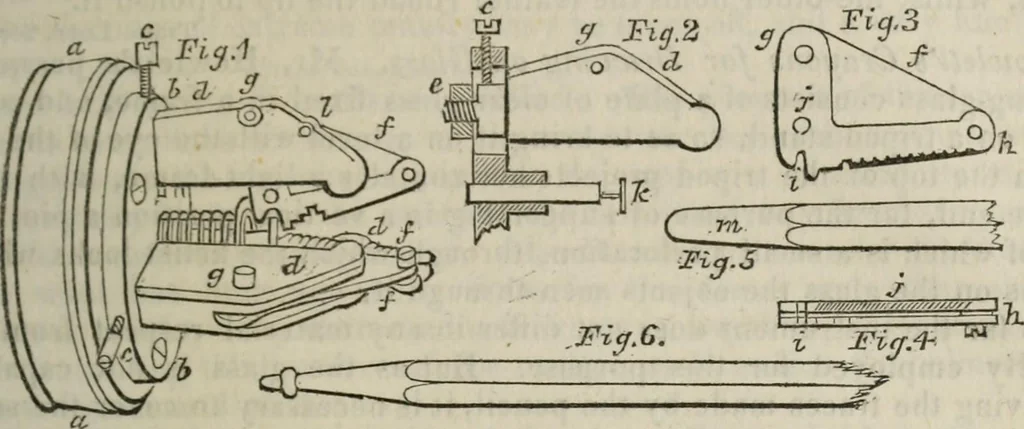

he face of a chuck, and revolve with the full speedof the lathe, by which the determined form is almost instantaneously givento it. In fig. 1 a a is the chuck which screws on to the nose of a mandril: it hasa seat turned in it to receive the circular plate b b, and a cavity deepenough for… … e is shown in fig. 2. These frames hold the compound cutters ///by thescrews at g g, on which they turn as joints. Fig. 3, shows a side view ofone pair of cutters, and fig. 4, a front view of their cutting edges. Theyare made of thin steel: the triangular plate / is filed along the edge h i tothe…
