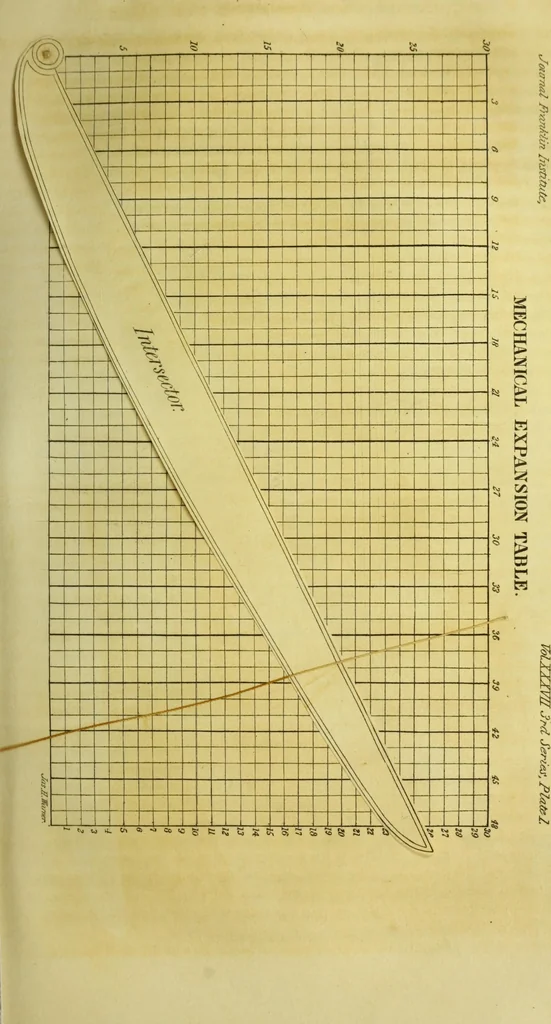

ding to the distance to which the steam is expanded, and the2?ressure line 30. Then the point where the intersector cuts the verti-cal or cut-off line 24, indicates the pressure of steam expanded to 48inches equal 15 pounds. The conditions being the same to find pres-sure at 36 inches, bring the… … Ye Anatomic of ye Engineer e. 5 and expanded to 45 inches, bring the intersector to junction of pres-sure line 25, and distance line 45, Ave find upon the cut offline 8, thepressure 4, 4 pounds. The same pressure is required for any other pres-sure and distance. The intersector operating upon the…
