Miller, Charles M · Peoria, Ill., The Manual arts press · leaf 115

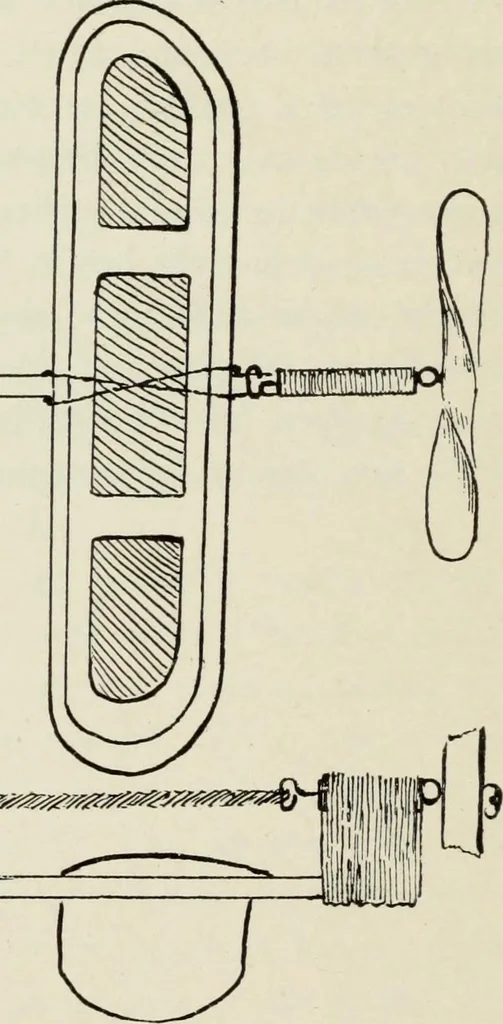

Fig. 220. … In Fig. 220 the model is shown in tw^o views, the plan and sideelevation. The planes are made of yV birch veneer, but other woods,will do. The small fore plane is bent at quite a sharp angle and was 112 MODEL AEROPLANES 113 shaped as shown in Fig. 221. Steam the plane thoroly over the tea-kettle…
Kites
