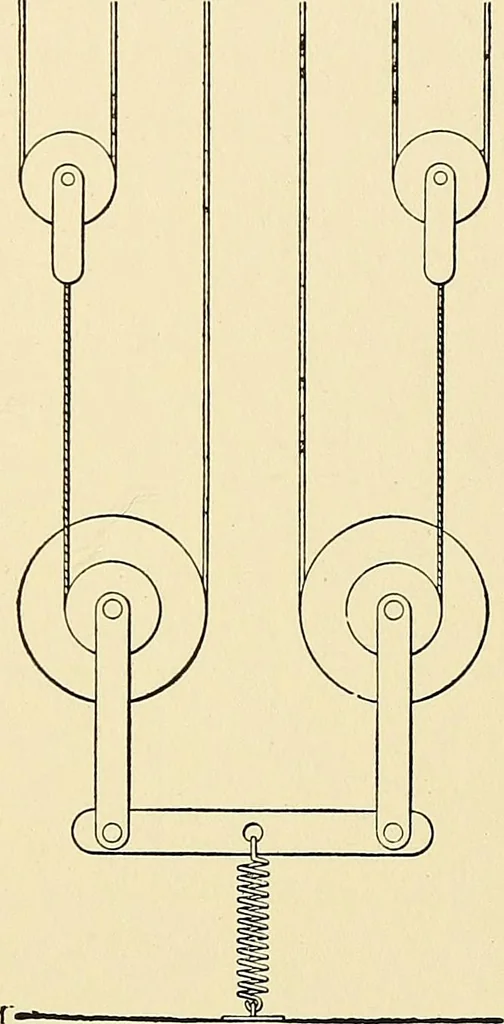

e, by adding on two pulleysto each end of the four-shaft lever, above the pulleys already upon it,we obtain a six-shaft reversing motion(fig. 261). One end of the strap on thetwo original pulleys is nailed to the fram-ing of the two new pulleys at each endof the lever; then straps are fastened… … Fig. 261.—Stocks and Bowls for SixShafts two shafts is in inverse proportion to theshaft controlling one. This rule practicallyinvolves the conversion of the base pulleysinto two divisions, changing them fromsimple to compound pulleys. The pulleyis in two sections, the one controlling twoshafts…
