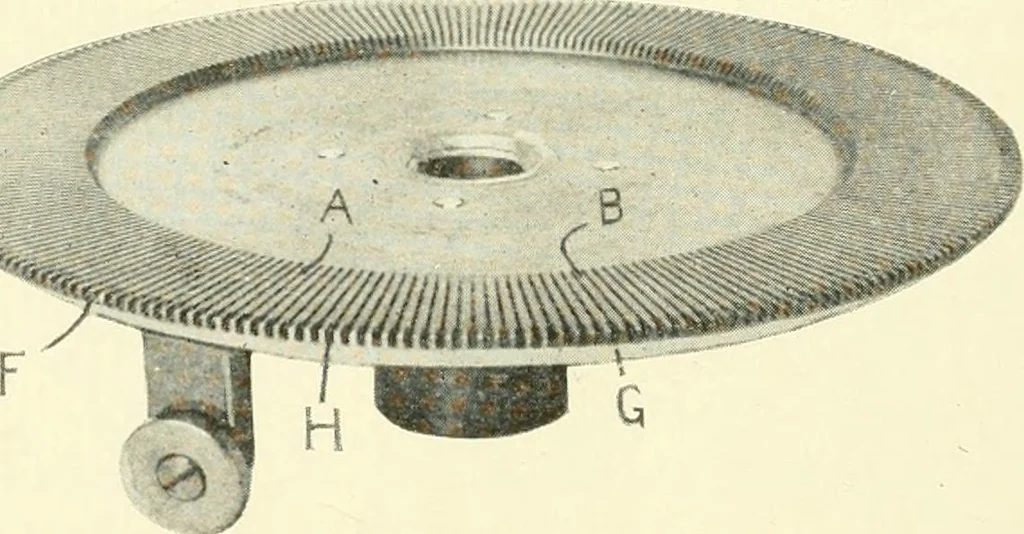

yarn draws through the dialneedles. One end of the fill-in or connecting cam is made low enoughfor the needle to pass around the stitch cam, and the other end highenough to return the hook of the needle about ^-inch above thecylinder top, for convenience in starting the machine, and also toassist… … Fig. 44. Needle Dial. is made to accommodate the radial needles, and the method of hold-ing it in position. The corresponding parts of the needle plate areknown by the same names as those of the cylinder. It is essentialthat the bore should be perfect, and be a nice fit on the dial shaft, inorder…
